Description

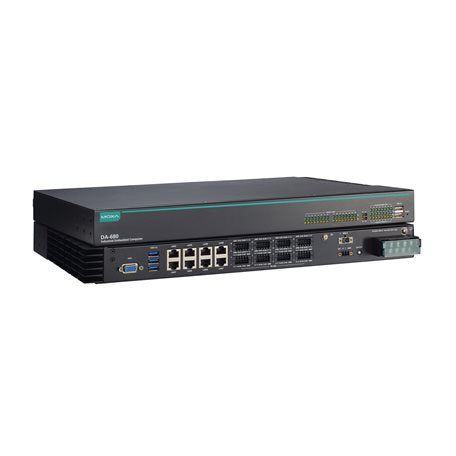

The DA-680-I-16-WL3-H is a fanless 19-inch 1U x86 rackmount computer built on an 8th Gen Intel Core i3-8145UE processor, designed for power substation automation and compliant with IEC 61850-3, IEEE 1613 and IEC 60255. This variant provides 8 Gigabit Ethernet ports and 16 isolated RS-485 ports, with a single 100-240 VAC/VDC power input and an operating range of -25 to 55°C. It is supplied without RAM, mSATA or an operating system.

Storage and expansion include one 2.5-inch HDD/SSD slot and one mSATA slot, with a DDR4 slot supporting up to 32 GB. Connectivity extends to a VGA output, multiple USB ports, digital outputs and an IRIG-B interface for precise time synchronisation, and TPM v2.0 is included. The platform supports Windows 10 IoT and Linux.

Features

- Complies with IEC 61850-3, IEEE 1613 and IEC 60255 for power substation automation
- 8th Gen Intel Core processor in a fanless design
- 8 Gigabit Ethernet ports for network redundancy
- 16 isolated RS-485 ports on this model
- 1 mSATA slot for the OS and 1 SSD/HDD slot for storage expansion
- IRIG-B interface with ±1 µs time synchronisation accuracy
- Supports Windows 10 IoT and Linux

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i3-8145UE (Whiskey Lake)
- Graphics: Intel UHD Graphics 620, 1 x VGA (DB-15)
- Memory: 1 x DDR4 non-ECC slot, up to 32 GB (supplied without RAM)
- Storage: 1 x 2.5-inch HDD/SSD slot and 1 x mSATA slot (supplied without mSATA or OS)
- Ethernet: 8 x 10/100/1000 Mbps RJ45
- Serial: 16 x RS-485 2-wire/4-wire ports
- USB: 3 x USB 3.0 (rear) and 3 x USB 2.0 (2 front, 1 internal)
- 2 x digital outputs
- IRIG-B time synchronisation (terminal block)
- TPM v2.0
- Power: 100-240 VAC/VDC single power input
- Operating temperature: -25 to 55°C
- Dimensions (without ears): 440 x 335.5 x 44 mm
- Weight: approx. 4659.5 g
- Mounting: 19-inch rack, 1U
- Compliance: IEC 61850-3, IEEE 1613, IEC 60255

FAQs

Q: Does the DA-680-I-16-WL3-H include RAM, mSATA storage or an operating system?
A: No. This model is supplied without RAM, mSATA and an operating system. It has one DDR4 non-ECC slot supporting up to 32 GB, plus one mSATA slot and one 2.5-inch HDD/SSD slot.

Q: How many serial and Ethernet ports does this model have?
A: It has 16 RS-485 ports (2-wire/4-wire) and 8 x 10/100/1000 Mbps RJ45 Ethernet ports.

Q: Which standards does it meet for substation use?
A: It complies with IEC 61850-3, IEEE 1613 and IEC 60255, which are the standards for power substation automation environments.

Q: What operating systems are supported?
A: The DA-680 platform supports Windows 10 IoT and Linux.

Q: What is the power input and operating temperature range?
A: This model has a single power input rated 100-240 VAC/VDC and operates from -25 to 55°C.

Q: Does it support time synchronisation?
A: Yes. It includes an IRIG-B interface on a terminal block with ±1 µs time synchronisation accuracy.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
