Moxa CP-602U-I w/o Cable | CP-602U-I 2-Port CAN Bus Universal PCI Board, 2 kV, No Cable

Authorised Moxa Partner

SKU:CP-602U-I w/o Cable

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

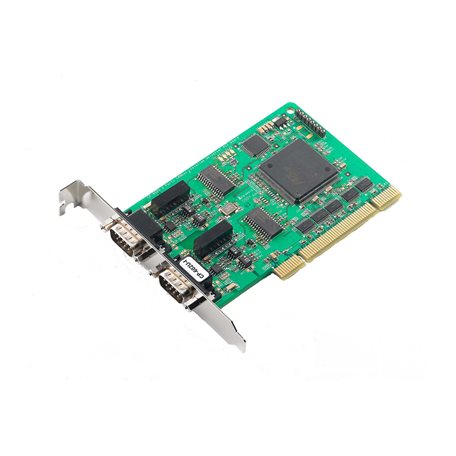

The Moxa CP-602U-I is a 2-port CAN bus interface board for the Universal PCI bus, built for industrial PCs that need reliable Controller Area Network connectivity. It provides two independent CAN ports on DB9 male connectors with 2 kV optical isolation, supports CAN 2.0A and CAN 2.0B, and handles transfer rates up to 1 Mbps. This variant is supplied without cable and operates across a 0 to 55°C temperature range.

Each port uses an NXP SJA1000 CAN controller with a PCA82C251 transceiver, and a jumper-selectable 120 ohm terminator resistor simplifies bus termination. Status LEDs show transmit and receive activity per port, and a Windows driver with a DLL library and examples is provided to speed up application development. Up to four boards can be installed in a single PC.

Features

- Supports CAN 2.0A and CAN 2.0B
- Two independent CAN communication ports
- Transmit/receive status LED on each port
- Optional 120 ohm terminator resistor for the CAN bus network
- DLL library and examples included
- Windows driver provided

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x CAN ports with DB9 male connectors
- Universal PCI interface
- Supports CAN 2.0A and CAN 2.0B
- CAN transfer rate up to 1 Mbps
- NXP SJA1000 CAN controller with PCA82C251 transceiver
- 2 kV optical isolation protection
- 120 ohm terminator resistor, selected by jumper
- Maximum 4 boards per PC
- Dimensions: 120 x 80 mm
- Operating temperature: 0 to 55°C
- Relative humidity: 5 to 95% (non-condensing)
- Supplied without cable

FAQs

Q: How many CAN ports does the CP-602U-I have?
A: It has two independent CAN ports, each on a DB9 male connector.

Q: Does the CP-602U-I include a cable?
A: No. This variant is supplied without cable, so the CAN cabling needs to be sourced separately.

Q: Which CAN standards and speeds are supported?
A: The board supports CAN 2.0A and CAN 2.0B with transfer rates up to 1 Mbps.

Q: What isolation protection does it provide?
A: It provides 2 kV optical isolation to protect the host PC from electrical noise and surges on the CAN bus.

Q: Can I install more than one board in a single PC?
A: Yes, up to four CP-602U-I boards can be installed in one PC.

Q: How do I terminate the CAN bus?
A: Each port has a 120 ohm terminator resistor that can be enabled by jumper selection.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
