Moxa CP-138U | CP-118U/138U 8-Port RS-422/485 Universal PCI Serial Board

Authorised Moxa Partner

SKU:CP-138U

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

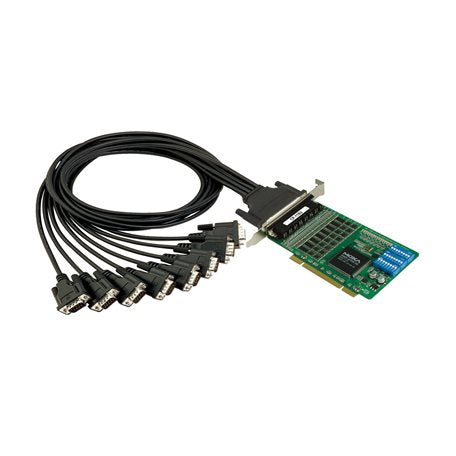

The CP-138U is an 8-port RS-422/485 universal PCI serial board for POS, ATM and industrial applications where reliable multiport serial connectivity is needed. Its 32-bit Universal PCI interface supports both 3.3 V and 5 V PCI buses as well as PCI-X, and each port connects through a DB62 female connector with baudrates from 50 bps to 921.6 kbps. This version has no isolation and operates from 0 to 55°C.

Built around the MU860 communication controller (16C550C compatible) with a 128-byte FIFO and hardware and software flow control, the board delivers over 700 kbps of data throughput. Up to 8 boards can be installed in a single PC, with drivers available for Windows, Linux and UNIX, and per-port Tx/Rx LEDs simplify maintenance.

Features

- Over 700 kbps data throughput for top performance
- 921.6 kbps maximum baudrate for fast data transmission
- 128-byte FIFO and on-chip hardware and software flow control
- Compatible with 3.3/5 V PCI and PCI-X
- Drivers for Windows, Linux and UNIX; other operating systems such as WEPOS also supported
- Easy maintenance with built-in LEDs and management software
- Onboard termination resistors can be activated per port by jumper

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-422/485 serial ports
- 32-bit Universal PCI bus (3.3/5 V PCI and PCI-X compatible)
- Communication controller: MU860 (16C550C compatible)
- 128-byte FIFO
- Baudrate: 50 bps to 921.6 kbps
- Connector: DB62 female
- Up to 8 boards per PC
- Built-in Tx/Rx LEDs for each port
- Operating temperature: 0 to 55°C (32 to 131°F)
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class B
- Approvals: KC; RoHS

FAQs

Q: What PCI bus types does the CP-138U support?
A: It uses a 32-bit Universal PCI interface that is compatible with both 3.3 V and 5 V PCI slots as well as PCI-X.

Q: Which operating systems have drivers for the CP-138U?
A: Moxa provides drivers for Windows, Linux and UNIX. Other operating systems such as WEPOS are also supported.

Q: What connector does the board use and how many ports does it provide?
A: The board provides 8 RS-422/485 serial ports through a DB62 female connector.

Q: Does the CP-138U provide electrical isolation?
A: No. This model has no isolation and operates over a 0 to 55°C temperature range.

Q: How many CP-138U boards can be installed in one PC?
A: Up to 8 boards can be installed in a single PC, depending on available PCI slots.

Q: Are termination resistors built in?
A: Yes. Onboard termination resistors can be activated for each port by jumper.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
