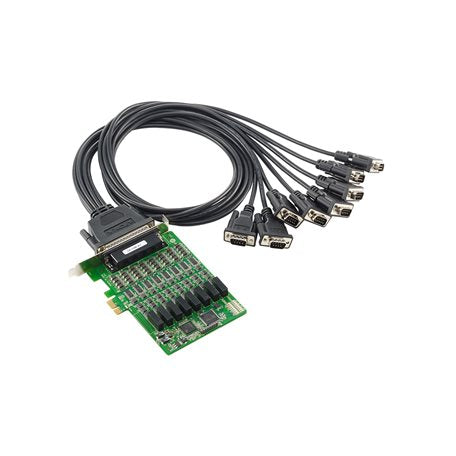

Moxa CP-138E-A-I w/o cable | CP-138E-A-I 8-Port RS-422/485 PCIe Serial Board, Isolated, No Cable

Authorised Moxa Partner

SKU:CP-138E-A-I w/o cable

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The CP-138E-A-I is an 8-port RS-422/485 PCI Express x1 serial board with 2 kV electrical isolation and 4 kV surge protection, built for industrial automation, POS and ATM applications. This SKU ships without the connection cable, so it suits deployments where cables or connection boxes are specified separately.

The low-profile board offers a maximum baudrate of 921.6 kbps, a 128-byte FIFO per port and full modem control signals. Drivers are provided for Windows and Linux, and per-port Tx/Rx LEDs make field maintenance straightforward.

Features

- Low-profile form factor suited to embedded computers
- On-chip hardware and software flow control
- Full modem control signals
- Choice of connection cables and boxes (sold separately)
- Drivers provided for Windows and Linux
- On-board LEDs and management software for easy maintenance
- 15 kV ESD protection
- 2 kV electrical isolation protects the host from ground loops and surges on the serial line

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-422/485 serial ports
- PCI Express x1 interface (PCI Express 1.0 compliant)
- Max baudrate 921.6 kbps
- 128-byte FIFO
- 4 kV surge protection and 2 kV electrical isolation
- Operating temperature 0 to 55°C
- Dimensions 107 x 136.9 mm, weight 139.7 g
- Input current 2,356 mA @ 3.3 VDC
- Tx/Rx LED indicators per port
- Certifications: CE, FCC
- OS support: Windows, Linux, UNIX
- Supplied without connection cable

FAQs

Q: Does the CP-138E-A-I include a connection cable?
A: No. This SKU is supplied without a cable. A choice of connection cables and boxes is available separately.

Q: What serial interfaces does this board support?
A: It provides 8 ports supporting RS-422 and RS-485, with a maximum baudrate of 921.6 kbps.

Q: What surge and isolation protection does it offer?
A: The board provides 4 kV surge protection and 2 kV electrical isolation, plus 15 kV ESD protection.

Q: Which operating systems are supported?
A: Windows, Linux and UNIX are supported, with drivers provided for Windows and Linux.

Q: What PCI Express slot does it need?
A: It uses a PCI Express x1 interface and is PCI Express 1.0 compliant. The low-profile form factor suits embedded computers.

Q: What is the operating temperature range?
A: The board operates from 0 to 55°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
