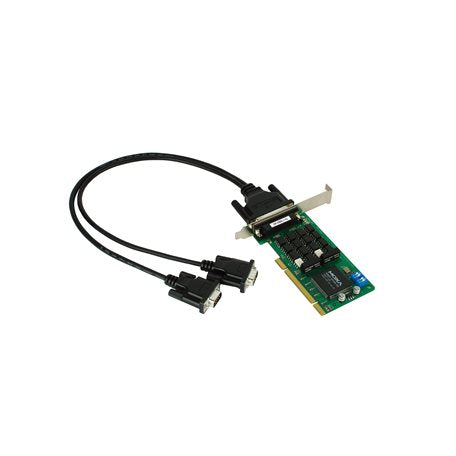

Moxa CP-132UL-I-T | CP-132UL 2-Port RS-422/485 Low-Profile PCI Serial Board, -40 to 85°C

Authorised Moxa Partner

SKU:CP-132UL-I-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa CP-132UL-I-T is a 2-port RS-422/485 low-profile Universal PCI serial board with 2 kV optical isolation and a wide operating temperature range of -40 to 85°C. It is built for industrial automation and edge connectivity where long-distance serial communication must stay reliable in electrically noisy, harsh environments. The MD1 low-profile form factor fits small-sized PCs and compact industrial computers.

The board uses a 32-bit Universal PCI bus compatible with 3.3/5 V PCI and PCI-X slots, with two DB25 female connectors and an MU860 16C550C-compatible controller with 128-byte FIFO. Automatic data direction control simplifies RS-485 wiring, and drivers are provided for Windows, Linux, UNIX and WEPOS.

Features

- Over 800 kbps data throughput
- ADDC (automatic data direction control) for RS-485
- Transmits up to 1.2 km over RS-422/485
- Supports up to 31 daisy-chained RS-485 devices
- On-chip software flow control
- Drivers provided for Windows, Linux, UNIX and WEPOS
- On-board ESD protection
- Low-profile form factor fits small-sized PCs

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x RS-422/485 serial ports
- 32-bit Universal PCI bus (3.3/5 V PCI and PCI-X compatible)
- DB25 female connectors
- MU860 communication controller (16C550C compatible)
- 128-byte FIFO
- Maximum baudrate 921.6 kbps
- 2 kV optical isolation
- Operating temperature -40 to 85°C
- MD1 low-profile form factor

FAQs

Q: What serial interfaces does the CP-132UL-I-T support?
A: It provides 2 x RS-422/485 serial ports on DB25 female connectors, with a maximum baudrate of 921.6 kbps.

Q: Which PCI slots is this board compatible with?
A: It uses a 32-bit Universal PCI bus and is compatible with 3.3/5 V PCI and PCI-X slots.

Q: What operating systems are supported?
A: Drivers are provided for Windows, Linux, UNIX and WEPOS.

Q: What does the -I-T suffix mean in this model?
A: This variant includes 2 kV optical isolation and a wide operating temperature range of -40 to 85°C, suited to harsh industrial environments.

Q: How far can this board transmit over RS-422/485?
A: It can transmit up to 1.2 km, and supports up to 31 daisy-chained RS-485 devices.

Q: Will it fit a small form factor PC?
A: Yes, it uses the MD1 low-profile form factor, designed to fit small-sized PCs.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
