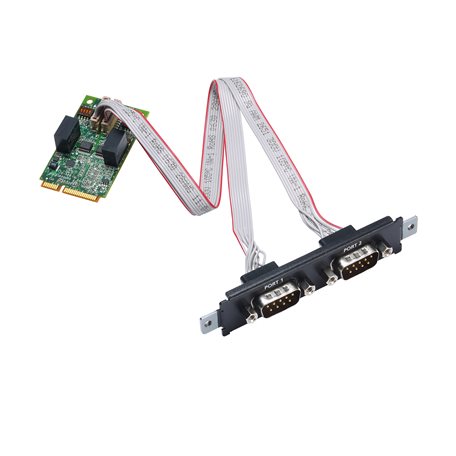

Moxa CP-132N-T | CP-132N 2-Port RS-422/485 Mini PCIe Serial Board, -40 to 85°C

Authorised Moxa Partner

SKU:CP-132N-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa CP-132N-T is a 2-port RS-422/485 Mini PCI Express serial board for system integrators, industrial automation projects and industrial PC builders. It is a non-isolated design that supports wide-temperature operation from -40 to 85°C, making it suited to harsh environments and embedded industrial computers with a Mini PCIe slot.

Each port uses a DB9 male connector and supports data rates from 50 bps up to 921.6 kbps, including non-standard baudrates. The board is compatible with most popular operating systems, with Linux drivers for kernel 4.x and 5.x, so it can be added to new or existing industrial systems for customised serial expansion and faster time to market.

Features

- RS-485 multidrop for up to 31 daisy-chained devices within 1.2 km
- Data rates up to 921.6 kbps
- Wide operating temperature range of -40 to 85°C
- Compatible with most popular operating systems
- Designed for OEMs and system integrators for customised expansion and faster time to market
- RoHS, CRoHS and WEEE compliant

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x RS-422/485 serial ports
- Bus: Mini PCI Express
- Connector: DB9 male
- Baudrate: 50 bps to 921.6 kbps (non-standard baudrates supported)
- Communication controller: 16C550C compatible
- FIFO: 128 bytes
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Input current: 487 mA @ 3.3 VDC
- Dimensions: 30 x 50.95 mm (1.18 x 2 in)
- Operating temperature: -40 to 85°C
- Linux drivers: kernel 4.x and 5.x
- MTBF: 4,128,967 hrs
- ESD protection: IEC 61000-4-2 contact 4 kV, air 8 kV

FAQs

Q: What type of slot does the CP-132N-T require?
A: It is a Mini PCI Express board, so the host system needs a free Mini PCIe slot.

Q: Which serial interfaces does it support?
A: It provides 2 serial ports that support RS-422 and RS-485, each on a DB9 male connector.

Q: What is the operating temperature range?
A: The CP-132N-T operates from -40 to 85°C, suited to industrial and harsh environments.

Q: What is the maximum baudrate?
A: Up to 921.6 kbps, with a minimum of 50 bps. Non-standard baudrates are also supported.

Q: Which operating systems are supported?
A: The board is compatible with most popular operating systems, including Linux with drivers for kernel 4.x and 5.x.

Q: Are the serial ports isolated?
A: No. The CP-132N-T is a non-isolated design.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
