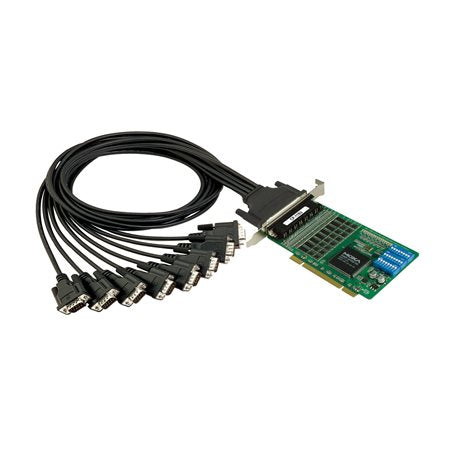

Moxa CP-118U-I | CP-118U 8-Port RS-232/422/485 PCI Serial Board, 2kV Isolation

Authorised Moxa Partner

SKU:CP-118U-I

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa CP-118U-I is an 8-port RS-232/422/485 Universal PCI serial board with 2 kV optical isolation, built for POS, ATM and industrial automation systems that need dependable multiport serial connectivity. It connects through a DB78 female connector, supports up to 921.6 kbps per port and operates across a 0 to 55°C temperature range.

The board uses a 32-bit Universal PCI interface compatible with 3.3 V and 5 V PCI and PCI-X slots, and up to 8 boards can be installed in a single PC. Drivers are provided for Windows, Linux and UNIX, with WEPOS also supported for embedded integration, and built-in LEDs and management software simplify day-to-day maintenance.

Features

- Over 700 kbps data throughput for top performance
- 921.6 kbps maximum baudrate for fast data transmission
- 128-byte FIFO with on-chip hardware and software flow control
- 2 kV optical isolation protects the host PC from serial line surges
- Drivers provided for Windows, Linux and UNIX, with WEPOS supported for embedded integration
- Built-in LEDs and management software for easy maintenance
- Full modem control signals for compatibility with a wide range of serial peripherals

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-232/422/485 serial ports
- 32-bit Universal PCI bus (3.3 V / 5 V PCI and PCI-X compatible)
- DB78 female connector
- MU860 (16C550C compatible) communication controller
- 128-byte FIFO
- Baudrate 50 bps to 921.6 kbps
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, XON/XOFF
- 2 kV optical isolation
- Up to 8 boards per PC
- Dimensions 82 x 135 mm (3.22 x 5.31 in)
- Operating temperature 0 to 55°C
- MTBF 1,073,385 hrs (Telcordia SR332)

FAQs

Q: Which serial interfaces does the CP-118U-I support?
A: Each of the 8 ports supports RS-232, RS-422 and RS-485, so a single board can serve a mix of serial peripherals.

Q: What PCI slot does the CP-118U-I require?
A: It uses a 32-bit Universal PCI interface compatible with 3.3 V and 5 V PCI and PCI-X slots.

Q: What does the -I suffix mean?
A: The -I model adds 2 kV optical isolation on the serial ports, which helps protect the host system from ground loops and electrical surges on the serial lines.

Q: Which operating systems are supported?
A: Drivers are provided for Windows, Linux and UNIX, and WEPOS is also supported for embedded integration.

Q: What connector does the board use and does it include cabling?
A: It has a DB78 female connector. A separate Moxa fan-out cable is needed to break the connector out into the individual serial ports.

Q: How many CP-118U-I boards can be installed in one PC?
A: Up to 8 boards can be installed in a single PC, depending on available PCI slots.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
