Moxa

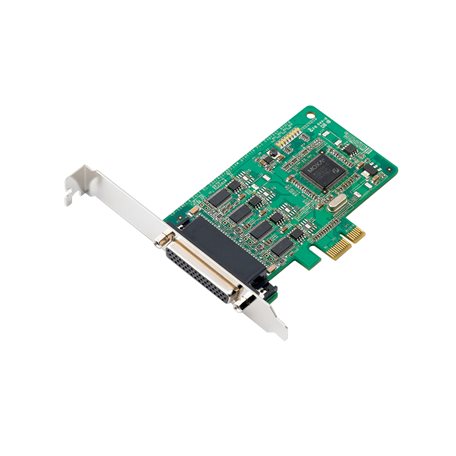

Moxa CP-114EL-I | 4-Port RS-232/422/485 Low-Profile PCI Express x1 Serial Board with Optical Isolation, Industrial Edge Connectivity

Moxa CP-114EL-I | 4-Port RS-232/422/485 Low-Profile PCI Express x1 Serial Board with Optical Isolation, Industrial Edge Connectivity

SKU:CP-114EL-I

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

Moxa CP-114EL-I: 4-port RS-232/422/485 PCIe x1 serial board with 2 kV optical isolation. Ideal for industrial edge connectivity. More Info

Features

Warranty

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q1: What are the key features of the Moxa CP-114EL Series PCI Express boards?
A1: The Moxa CP-114EL Series PCI Express boards are designed for industrial edge connectivity, offering 4-port RS-232/422/485 communication. These boards come with optional 2 kV isolation, ensuring reliable data transmission in harsh environments. They are ideal for applications requiring multiple serial connections and are compatible with PCI Express slots.
Q2: How does the Moxa CP-114EL-I model differ from other models in the CP-114EL Series?
A2: The Moxa CP-114EL-I model is a low-profile PCI Express x1 serial board that includes optical isolation. This feature provides enhanced protection against electrical interference, making it suitable for environments with high electromagnetic interference. The CP-114EL-I is specifically designed for applications that require robust and isolated serial communication.
Q3: Can the Moxa CP-114EL Series be used in Australian industrial settings?
A3: Yes, the Moxa CP-114EL Series is well-suited for Australian industrial environments. Its robust design and optional 2 kV isolation make it ideal for use in industries such as manufacturing, transportation, and energy, where reliable serial communication is critical. The series is designed to withstand harsh conditions, ensuring consistent performance.
Q4: Where can I purchase Moxa CP-114EL Series products in Australia?
A4: You can purchase Moxa CP-114EL Series products from IP Trading, a reputable B2B IT reseller in Australia. IP Trading offers a range of Moxa products, including the CP-114EL Series, and provides local support and expertise to help you select the right solution for your industrial connectivity needs.
Q5: What type of applications can benefit from using Moxa's Multiport Serial Boards?
A5: Moxa's Multiport Serial Boards, such as the CP-114EL Series, are ideal for applications that require multiple serial connections, including industrial automation, data acquisition, and process control. These boards support RS-232/422/485 communication, making them versatile for various industrial protocols and ensuring seamless integration into existing systems.

Technical Specifications

Product Type: PCI Express serial board
Number of Ports: 4
Supported Interfaces: RS-232, RS-422, RS-485
PCI Express Type: Low-profile PCI Express x1
Isolation: Optional 2 kV optical isolation
Operating Temperature Range: -40 to 85°C (-40 to 185°F)
Storage Temperature Range: -40 to 85°C (-40 to 185°F)
Humidity: 5% to 95% non-condensing
Certifications: CE, FCC
Power Requirements: 3.3V DC from PCI Express slot
Dimensions: Low-profile form factor
Connector Type: DB9 or terminal block (depending on model configuration)
Data Rate: Up to 921.6 kbps per port
Flow Control: XON/XOFF, RTS/CTS
ESD Protection: 15 kV on all signal pins
Driver Support: Windows, Linux, and other operating systems
MTBF: High reliability with MTBF values available upon request
Warranty: Standard manufacturer warranty terms apply
