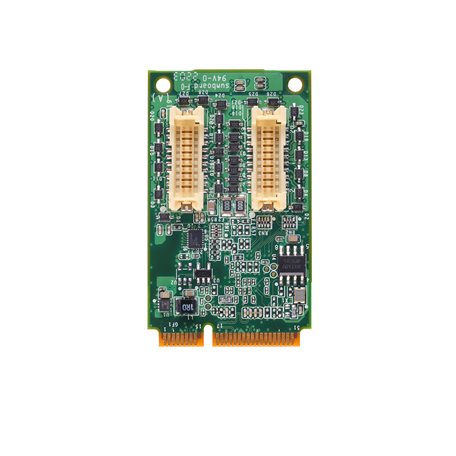

• Moxa CP-104N-I-T/KC mini PCIe serial board with green PCB and beige connectors
1 1

Moxa

Moxa CP-104N-I-T/KC | 104N Mini PCIe Serial Board, 2.5 kV Isolation, 40 to 85°C (KC), 4 x RS, 232, CP

Moxa CP-104N-I-T/KC | 104N Mini PCIe Serial Board, 2.5 kV Isolation, 40 to 85°C (KC), 4 x RS, 232, CP

CP-104N-I-T/KC

Stock Status: Enquire

$0.00 AUD
$0.00 AUD
$0.00 AUD
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

The CP-104N-I-T/KC is a compact Mini PCIe 4‑port RS‑232 board designed for embedded and industrial PCs that need reliable serial connectivity in harsh environments. Each port features 2.5 kV capacitive isolation to protect against ground loops and electrical noise, and the wide operating temperature (-40 to 85°C) ensures dependable operation in the field. Moxa provides mature Windows and Linux drivers for long-term platform support, making integration straightforward. Backed by Moxa’s industry-leading warranty for peace of mind. Available now at iptrading.com.au — competitive prices and local support.

Features

- Compact mPCIe design for embedded/industrial PCs
- 2.5 kV isolated RS-232 ports enhance protection and reliability
- Wide -40 to 85°C operation for harsh environments
- High-speed serial up to 921.6 kbps per port
- KC certification for deployment in Korea
- Robust driver support for Windows and Linux

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232 serial ports
- Mini PCI Express (mPCIe) form factor
- 2.5 kV capacitive isolation per port
- Operating temperature: -40 to 85°C
- Max baud rate: 921.6 kbps
- Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- ESD protection on serial lines
- KC-certified model for Korea (/KC)
- OS drivers: Windows and Linux
- Powered by 3.3 V from mPCIe slot

FAQs

Q: What is the CP-104N-I-T/KC used for?
A: It adds four isolated RS-232 ports to an embedded or industrial PC via a Mini PCIe slot, providing reliable serial connectivity in harsh environments.

Q: What isolation does it provide?
A: Each RS-232 port features 2.5 kV capacitive isolation to protect devices and hosts from ground loops and electrical noise.

Q: Which operating systems are supported?
A: Moxa provides drivers for popular Windows editions and mainstream Linux kernels. Check the latest driver list on Moxa’s website for specific OS versions.

Q: Does it include connectors for DB9 ports?
A: The board connects to a breakout cable from its board header to provide 4 x RS-232 interfaces. Verify package contents or order the matching Moxa cable kit if required.

Q: Is this the wide-temperature version?
A: Yes. The I-T variant operates from -40 to 85°C and includes 2.5 kV isolation per port.

Q: Can I buy this in Australia from IP Trading?
A: Yes. IP Trading can supply the CP-104N-I-T/KC and related accessories with local warranty handling and support.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
