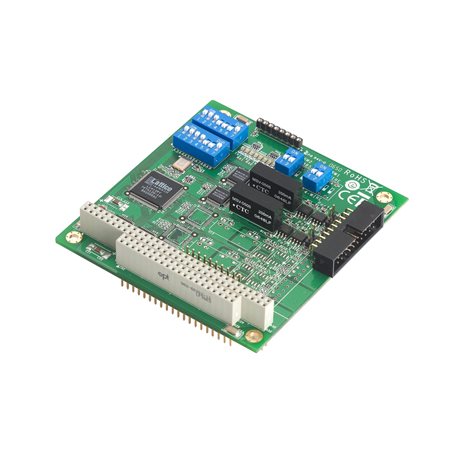

Moxa CA-132I-T | CA-132/132I PC/104 2-Port RS-422/485 Board, 2 kV, -40 to 85C

Authorised Moxa Partner

SKU:CA-132I-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa CA-132I-T is a PC/104 serial board with 2 RS-422/RS-485 ports and 2 kV optical isolation, built for embedded and industrial computing platforms. This wide-temperature variant is rated for -40 to 85°C operation, making it suited to harsh or unconditioned enclosures where standard boards would not survive. Each port supports baudrates from 50 bps up to 921.6 kbps over a 20-pin box header connector.

The board uses two 16C550C-compatible UARTs with 64-byte FIFOs, supports RS-485 2-wire and 4-wire with automatic data direction control, and includes Tx and Rx LED indicators for each port. I/O address and interrupt are set by DIP switches, and up to 8 boards can be installed in a single PC. Driver support covers Windows CE 5.0/6.0 and Windows XP Embedded.

Features

- 921.6 kbps maximum baudrate for fast data transmission
- On-chip software flow control
- Onboard Tx and Rx LED indicators for each port
- RS-485 ADDC (Automatic Data Direction Control) support
- 2 kV optical isolation protection
- Wide-temperature design for -40 to 85°C environments
- Supports Windows CE 5.0/6.0 and Windows XP Embedded

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- PC/104 bus interface with 20-pin box header connector
- 2 x RS-422/RS-485 ports (RS-485 2-wire and 4-wire)
- 2 kV isolation
- Baudrate: 50 bps to 921.6 kbps
- Communication controller: 16C550C or compatible x 2, 64-byte FIFO
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, XON/XOFF
- IRQ: 3, 4, 5, 6, 7, 9, 10, 11, 12, 15 (shared across ports)
- I/O address and interrupt set by DIP switches
- Up to 8 boards per PC
- Input: 5 VDC, 190 mA
- Dimensions: 90 x 96 mm (3.54 x 3.78 in)
- Operating temperature: -40 to 85°C
- EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A
- RoHS compliant

FAQs

Q: What is the difference between the CA-132I-T and the CA-132I?
A: Both provide 2 RS-422/RS-485 ports with 2 kV isolation. The -T model is the wide-temperature variant rated for -40 to 85°C operation.

Q: Which serial interfaces does the CA-132I-T support?
A: It provides 2 ports supporting RS-422 and RS-485, including both 2-wire and 4-wire RS-485, with automatic data direction control.

Q: How many CA-132I-T boards can be installed in one PC?
A: Up to 8 boards can be installed in a single PC. I/O address and interrupt are configured with DIP switches.

Q: Which operating systems are supported?
A: Windows CE 5.0/6.0 and Windows XP Embedded are supported.

Q: What is the maximum baudrate?
A: Each port supports baudrates from 50 bps up to 921.6 kbps.

Q: What power does the board require?
A: The board draws 190 mA at 5 VDC from the PC/104 bus.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
