Moxa CA-132I | PC/104 Serial Board, 2-Port RS-422/485, 2kV Isolation

Authorised Moxa Partner

SKU:CA-132I

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

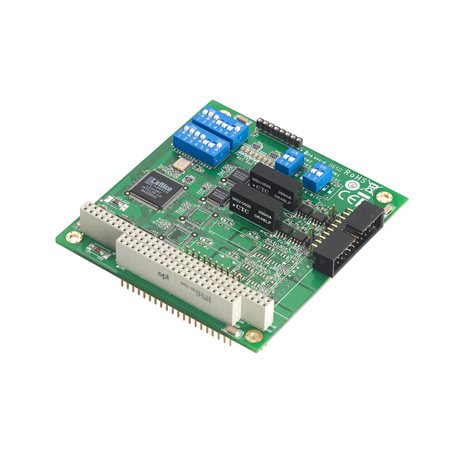

The Moxa CA-132I is a PC/104 serial board with 2 RS-422/RS-485 ports and 2 kV optical isolation, designed for PC/104 CPU boards that need reliable industrial serial connectivity. This standard temperature model (0 to 55°C) suits controlled environments where isolated serial links protect equipment from ground loops and electrical noise.

Two 16C550C compatible UARTs with 64-byte FIFOs support baudrates from 50 bps to 921.6 kbps. DIP switches set the I/O base address and interrupt vector, and up to 8 boards can be installed per PC. Drivers are available for Windows CE 5.0/6.0 and Windows XP Embedded.

Features

- 2 kV optical isolation protection on the serial ports
- 921.6 kbps maximum baudrate for fast data transmission
- On-chip software flow control
- Onboard Tx and Rx LED indicators for each port
- Supports RS-485 ADDC (Automatic Data Direction Control)
- Supports Windows CE 5.0/6.0 and Windows XP Embedded

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- PC/104 bus interface
- 2 x RS-422/RS-485 serial ports
- Communication controller: 16C550C or compatible x 2
- Baudrate: 50 bps to 921.6 kbps
- 64-byte FIFO
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, XON/XOFF
- Isolation: 2 kV
- Connector: 20-pin box header
- IRQ: 3, 4, 5, 6, 7, 9, 10, 11, 12, 15 (shared for all ports)
- DIP switches for I/O base address and interrupt vector
- Up to 8 boards per PC
- Input voltage: 5 VDC
- Input current: 190 mA @ 5 VDC
- Dimensions: 90 x 96 mm (3.54 x 3.78 in)
- Operating temperature: 0 to 55°C
- Storage temperature: -40 to 85°C

FAQs

Q: What type of host does the Moxa CA-132I require?
A: It is a PC/104 bus module, so it needs a PC/104 CPU board or stack that accepts the PC/104 expansion interface.

Q: Does the CA-132I support both RS-422 and RS-485?
A: Yes. Both of its two serial ports support RS-422 and RS-485, and RS-485 operation includes ADDC (Automatic Data Direction Control).

Q: What isolation does this model provide?
A: The CA-132I provides 2 kV optical isolation on its serial ports, which helps protect the host from surges and ground loop noise.

Q: What is the operating temperature range?
A: This standard temperature model operates from 0 to 55°C.

Q: How many CA-132I boards can be installed in one PC?
A: Up to 8 boards can be installed per PC, with I/O base address and interrupt vector set using the onboard DIP switches.

Q: Which operating systems are supported?
A: The CA-132I supports Windows CE 5.0/6.0 and Windows XP Embedded.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
