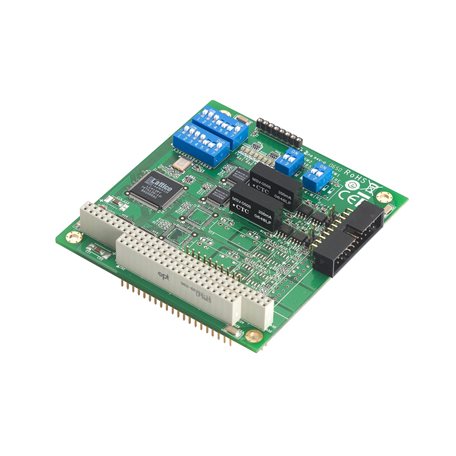

Moxa CA-132-T | PC/104 2-Port RS-422/485 Serial Board, -40 to 85°C

Authorised Moxa Partner

SKU:CA-132-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The CA-132-T is a PC/104 bus serial board with 2 RS-422/485 ports, built to add multiport serial connectivity to PC/104 CPU boards in industrial embedded systems. This wide-temperature variant operates from -40 to 85°C and is the non-isolated model of the CA-132 range, suited to harsh-environment deployments where isolation is not required.

Each port supports RS-422, RS-485 4-wire and RS-485 2-wire operation at baudrates from 50 bps up to 921.6 kbps, with on-chip software flow control and Tx/Rx LEDs for each port. Compact 90 x 96 mm dimensions and a 5 VDC supply make it straightforward to integrate into stacked PC/104 designs.

Features

- High-performance multiport serial communication for PC/104 CPU boards
- Supports RS-422, RS-485 4-wire and RS-485 2-wire
- 921.6 kbps maximum baudrate
- Wide-temperature operation (-40 to 85°C)
- On-chip software flow control
- Tx/Rx LED indicators for each port

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- PC/104 bus
- 2 x RS-422/485 ports
- Baudrate 50 bps to 921.6 kbps
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, XON/XOFF
- Input: 5 VDC, 155 mA
- Dimensions 90 x 96 mm (3.54 x 3.78 in)
- Operating temperature -40 to 85°C (-40 to 185°F)
- Storage temperature -40 to 85°C (-40 to 185°F)
- Ambient relative humidity 5 to 95% (non-condensing)
- Tx/Rx LEDs for each port

FAQs

Q: What is the difference between the CA-132-T and the CA-132I?
A: The CA-132-T is the wide-temperature model without isolation, while the CA-132I is the isolated variant of the same series. Choose the CA-132-T when you need -40 to 85°C operation and isolation is not required.

Q: Which serial interfaces does the CA-132-T support?
A: Each of the 2 ports supports RS-422, RS-485 4-wire and RS-485 2-wire.

Q: What is the maximum baudrate?
A: The CA-132-T supports baudrates from 50 bps up to 921.6 kbps.

Q: What operating temperature range does the CA-132-T support?
A: It operates from -40 to 85°C (-40 to 185°F), making it suitable for extreme-temperature industrial environments.

Q: What power does the CA-132-T require?
A: It runs from a 5 VDC input and draws 155 mA.

Q: Which host systems is it compatible with?
A: The CA-132-T is a PC/104 bus module intended for PC/104 CPU boards.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
