Moxa CA-114 | 4-Port RS-232/422/485 PC/104 Serial Board, 0-55°C

Authorised Moxa Partner

SKU:CA-114

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

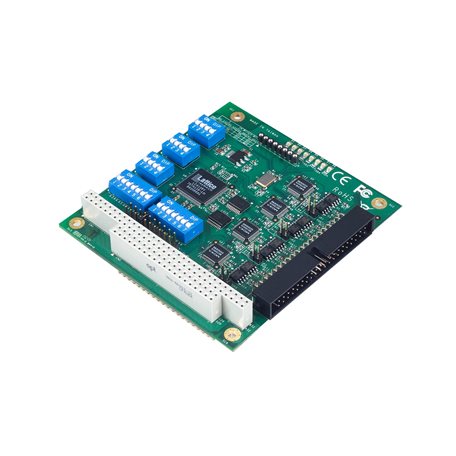

The Moxa CA-114 is a 4-port RS-232/422/485 PC/104 multiport serial board that adds software-selectable serial connectivity to PC/104 CPU boards. This standard temperature model operates from 0 to 55°C, making it well suited to embedded and industrial automation systems that need reliable serial communication with up to 921.6 kbps per port.

Each port uses a 16C550C or compatible UART with a 64-byte FIFO, and the board connects through 40-pin box headers. IRQ, I/O address and serial interface are set with jumpers and DIP switches, and up to 8 boards can be installed in a single PC. Windows CE 5.0/6.0 and Windows XP Embedded are supported, and optional DB9 and DB25 cables are available.

Features

- 921.6 kbps maximum baudrate for fast data transmission
- On-chip hardware and software flow control
- IRQ, I/O address and serial interface selectable via jumpers and DIP switches
- Onboard Tx and Rx LED indicators for each port
- Supports Windows CE 5.0/6.0 and Windows XP Embedded
- Optional DB9 and DB25 connection cables available

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232/422/485 serial ports
- PC/104 bus interface
- Communication controller: 16C550C or compatible x 4
- Baudrate: 50 bps to 921.6 kbps
- 64-byte FIFO
- 40-pin box header connector
- IRQ: 3, 4, 5, 6, 7, 9, 10, 11, 12, 15 (shared for all ports)
- Data bits: 5, 6, 7, 8; Stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, XON/XOFF
- Input: 5 VDC, 305 mA
- Dimensions: 90 x 96 mm (3.54 x 3.78 in)
- Operating temperature: 0 to 55°C
- Up to 8 boards per PC

FAQs

Q: What serial interfaces does the CA-114 support?
A: Each of the 4 ports is software-selectable between RS-232, RS-422 and RS-485.

Q: What is the operating temperature range of the CA-114?
A: The standard CA-114 operates from 0 to 55°C. A wide-temperature variant is available for -40 to 85°C.

Q: What is the maximum baudrate?
A: The CA-114 supports baudrates from 50 bps up to 921.6 kbps on each port.

Q: How many CA-114 boards can be installed in one system?
A: Up to 8 boards can be installed in a single PC.

Q: Which operating systems does the CA-114 support?
A: It supports Windows CE 5.0/6.0 and Windows XP Embedded.

Q: Are connection cables included?
A: The board connects via 40-pin box header connectors. Optional DB9 and DB25 cables are available separately.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
