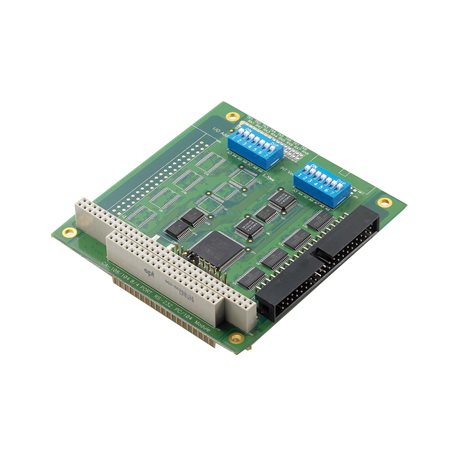

Moxa CA-108-T | CA-108 8-Port RS-232 PC/104 Serial Board, -40 to 85°C

Authorised Moxa Partner

SKU:CA-108-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa CA-108-T is an 8-port RS-232 PC/104 multiport serial board for embedded and industrial computing systems that use the PC/104 expansion interface. This wide temperature variant is rated for operation from -40 to 85°C, making it suited to harsh environments such as outdoor cabinets, transport systems and factory floors where standard boards would fail.

The compact PC/104 form factor measures just 90 x 96 mm, so it integrates easily into space-constrained designs. Built-in Tx/Rx LEDs for each port simplify commissioning and troubleshooting, and drivers are available for a wide range of Windows versions and Linux, which helps when connecting legacy serial devices to modern embedded platforms.

Features

- Maximum baudrate of 921.6 kbps for fast data transmission
- On-chip hardware and software flow control
- Compact PC/104 form factor for easy integration into space-constrained systems
- Per-port Tx/Rx LED indicators
- Wide-temperature operation suited to harsh industrial environments
- Windows and Linux driver support

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial bus: PC/104
- Serial standard: RS-232
- Number of serial ports: 8
- Maximum baudrate: 921.6 kbps
- Operating temperature: -40 to 85°C (-40 to 185°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- Input voltage: 5 VDC
- Input current: 210 mA @ 5 VDC
- Dimensions: 90 x 96 mm (3.54 x 3.78 in)
- LEDs: built-in Tx/Rx LED for each port
- Drivers: Windows and Linux
- Compliance: RoHS, CRoHS, WEEE

FAQs

Q: What temperature range does the CA-108-T support?
A: The CA-108-T operates from -40 to 85°C (-40 to 185°F), which is the wide temperature variant of the CA-108 series.

Q: How many serial ports does the CA-108-T provide and which standard?
A: It provides 8 serial ports using the RS-232 standard, with a maximum baudrate of 921.6 kbps.

Q: What type of host system is the CA-108-T designed for?
A: It is a PC/104 module, so it is intended for PC/104 CPU boards and embedded systems that accept the PC/104 expansion interface.

Q: Which operating systems are supported?
A: Drivers are available for Windows (including DOS, 95/98/ME/NT/2000, XP, Vista, 7, 8, 8.1, 10, Embedded CE and XP Embedded) and Linux.

Q: What power does the CA-108-T require?
A: It runs from a 5 VDC input and draws 210 mA at 5 VDC.

Q: Does the board include status indicators?
A: Yes, each port has a built-in Tx/Rx LED to help with installation and troubleshooting.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
