Moxa CA-104-T | CA-104 PC/104 4-Port RS-232 Serial Module, -40 to 85°C

Authorised Moxa Partner

SKU:CA-104-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

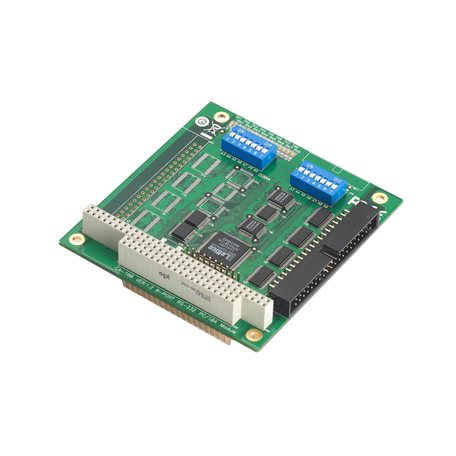

The Moxa CA-104-T is a PC/104 bus 4-port RS-232 serial module for embedded PC/104 CPU boards, giving industrial and embedded systems four additional serial ports. This wide temperature variant operates from -40 to 85°C, suiting unconditioned cabinets, outdoor enclosures and other harsh deployments where standard serial boards would fail.

Each port is driven by a 16C550C or compatible UART with a 64-byte FIFO and supports baudrates from 50 bps to 921.6 kbps, with full RS-232 modem control signals. IRQ and I/O settings are selected by jumper and DIP switch, and up to 8 boards can be installed per PC. Driver support covers DOS, Windows, Linux, FreeBSD and QNX, plus Windows CE and Windows XP Embedded.

Features

- 921.6 kbps maximum baudrate for fast data transmission
- On-chip software flow control
- IRQ and I/O settings selectable via jumper and DIP switch
- Onboard Tx and Rx LED indicators for each port
- Windows CE 5.0/6.0 and Windows XP Embedded support
- Drivers for DOS, Windows, Linux 2.4/2.6, FreeBSD 4.x and QNX 4
- Optional DB9 and DB25 connection cables available
- Wide operating temperature range of -40 to 85°C

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232 ports
- PC/104 bus interface
- 16C550C or compatible communication controller x 4
- 64-byte FIFO
- Baudrate: 50 bps to 921.6 kbps
- 40-pin box header connector
- RS-232 signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, XON/XOFF
- IRQ: 3, 4, 5, 6, 7, 9, 10, 11, 12, 15 (shared across all ports)
- Maximum 8 boards per PC
- Input: 5 VDC, 210 mA
- Operating temperature: -40 to 85°C
- Dimensions: 90 x 96 mm

FAQs

Q: What is the difference between the CA-104-T and the standard CA-104?
A: The CA-104-T is the wide-temperature variant, rated for operation from -40 to 85°C, making it suitable for harsh industrial environments.

Q: What serial interface does the CA-104-T provide?
A: It provides four RS-232 ports on a PC/104 bus board, with TxD, RxD, RTS, CTS, DTR, DSR, DCD and GND signals available on a 40-pin box header connector.

Q: How many CA-104-T boards can be installed in one system?
A: A maximum of 8 boards can be used per PC. The IRQ is shared across all ports on the board.

Q: Which operating systems are supported?
A: Drivers are available for DOS, Windows, Linux 2.4/2.6, FreeBSD 4.x and QNX 4, with support for Windows CE 5.0/6.0 and Windows XP Embedded.

Q: What is the maximum baudrate?
A: Each port supports baudrates from 50 bps up to 921.6 kbps, with a 64-byte FIFO per port.

Q: Are connection cables included?
A: The module uses a 40-pin box header connector. Optional DB9 and DB25 connection cables are available separately.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
