Moxa BXP-C100-C1-T-Win10 | BXP-C100 Industrial Box PC, Celeron 6305E, 8GB, 64GB CFast, Win10

Authorised Moxa Partner

SKU:BXP-C100-C1-T-Win10

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

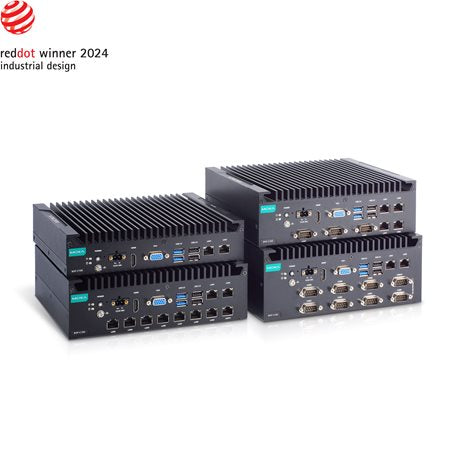

The Moxa BXP-C100-C1-T-Win10 is a fanless industrial box computer built on an 11th Gen Intel Celeron 6305E processor, suited to factory automation, machine control and edge data acquisition. This model ships with 8GB DDR4 memory, a 64GB CFast card and Windows 10 IoT Enterprise LTSC preinstalled, so it is ready to deploy with 2 LAN ports, 2 serial ports and 4 DI/4 DO onboard.

Dual VGA and HDMI outputs, six USB ports and a wide 12/24 VDC power input make it practical for control cabinets and industrial environments. An SD slot and a SODIMM slot supporting up to 32GB give room to expand storage and memory, and an optional kit allows wall mounting.

Features

- 11th Gen Intel Core (Tiger Lake) platform in a compact box form factor
- Fanless design for industrial deployments
- Dual display outputs (VGA and HDMI)
- Onboard DI/DO for industrial I/O
- Wide 12/24 VDC power input
- Preinstalled Windows 10 IoT Enterprise LTSC image with 64GB CFast

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Celeron 6305E, dual core, 4M cache, 1.80 GHz
- Memory: 8GB DDR4 pre-installed, 1 x SODIMM slot, up to 32GB
- Storage: 1 x CFast slot (SATA III) with 64GB CFast card pre-installed
- Expansion storage: 1 x SD slot (SD 3.0, SDHC/SDXC)
- LAN: 2 x 10/100/1000 Mbps (RJ45)
- Serial: 2 ports
- USB: 4 x USB 2.0 and 2 x USB 3.0 (Type-A)
- Digital I/O: 4 x DI, 4 x DO
- Video: 1 x VGA, 1 x HDMI
- Power input: 12/24 VDC
- Operating system: Windows 10 IoT Enterprise LTSC
- Weight: 2,015 g (4.44 lb)
- Mounting: wall mounting (optional kit)

FAQs

Q: Which operating system is preinstalled on the BXP-C100-C1-T-Win10?
A: It ships with Windows 10 IoT Enterprise LTSC preinstalled on a 64GB CFast card.

Q: Can the memory be upgraded?
A: Yes. It has 8GB DDR4 pre-installed in a single SODIMM slot, which supports up to 32GB.

Q: What display outputs does it provide?
A: One VGA and one HDMI output, allowing dual display configurations.

Q: What industrial I/O is built in?
A: It provides 4 digital inputs and 4 digital outputs, plus 2 serial ports and 2 Gigabit LAN ports.

Q: What power supply does it need?
A: It accepts a wide 12/24 VDC power input.

Q: Can it be wall mounted?
A: Yes, wall mounting is supported using an optional mounting kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
