Moxa BXP-C100-C1-T | BXP-C100 Fanless Box PC, Celeron 6305E, 8GB, 2 LAN

Authorised Moxa Partner

SKU:BXP-C100-C1-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

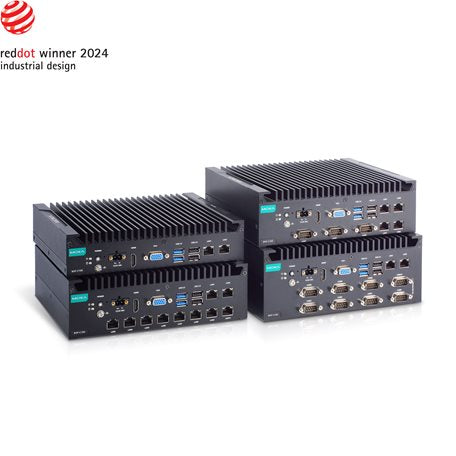

The Moxa BXP-C100-C1-T is a fanless industrial box PC built on an Intel Celeron 6305E processor with 8 GB of DDR4 memory. This base model offers 2 LAN and 2 serial ports, ships without an operating system, and is rated for -30 to 60°C operation, making it well suited to field automation and edge computing deployments.

The compact box-type chassis accepts 12/24 VDC power and provides 4 x DI and 4 x DO for direct I/O connection, alongside VGA and HDMI video outputs, USB 2.0 and USB 3.0 ports, and CFast and SD storage slots. It belongs to the BXP-C100 Series, which is certified for DNV, CID2, ATEX and IECEx environments.

Features

- Fanless box-type design for reliable operation without moving parts
- Wide -30 to 60°C operating temperature range
- Compact size to fit most field applications
- 11th Gen Intel processor platform
- DNV, CID2, ATEX and IECEx certified series
- Digital I/O onboard for direct sensor and actuator connection
- Dual video outputs with VGA and HDMI

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Celeron 6305E, dual core, 4M cache, 1.80 GHz
- Memory: 8 GB DDR4
- Storage slots: 1 x CFast, 1 x SD
- Network: 2 x LAN
- Serial: 2 x COM
- USB: 4 x USB 2.0, 2 x USB 3.0
- Digital I/O: 4 x DI, 4 x DO
- Video outputs: 1 x VGA, 1 x HDMI
- Power input: 12/24 VDC
- Operating system: none preinstalled
- Operating temperature: -30 to 60°C

FAQs

Q: Does the BXP-C100-C1-T come with an operating system?
A: No. This model ships without an operating system preinstalled, so you can deploy the OS and image that suit your application.

Q: What operating temperature range does this model support?
A: The -T model is rated for -30 to 60°C, suitable for wide-temperature industrial and field environments.

Q: What power input does it use?
A: It runs from a 12/24 VDC power input, which suits typical industrial and vehicle-style DC supplies.

Q: What storage options does it provide?
A: It has one CFast slot and one SD slot for storage.

Q: What serial and network connectivity is included?
A: This variant includes 2 x LAN ports and 2 x serial COM ports, plus 4 x USB 2.0 and 2 x USB 3.0 ports.

Q: Does it have digital I/O and video outputs?
A: Yes. It provides 4 digital inputs and 4 digital outputs, along with 1 x VGA and 1 x HDMI video output.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
