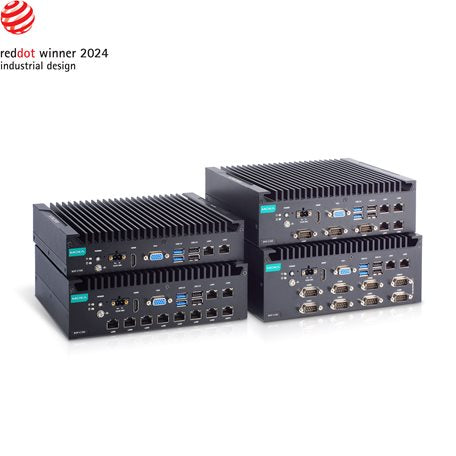

Moxa BXP-C100-C1-8L-T | BXP-C100 Fanless Box Computer, Celeron 6305E, 8GB, 10 LAN

Authorised Moxa Partner

SKU:BXP-C100-C1-8L-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa BXP-C100-C1-8L-T is a fanless x86 industrial box computer built around an 11th Gen Intel Celeron 6305E processor with 8 GB of pre-installed DDR4 memory. It provides 10 Gigabit Ethernet LAN ports and 2 software-selectable RS-232/422/485 serial ports, making it well suited to field applications that need dense network connectivity and legacy serial device integration.

A 12/24 VDC power input, a -30 to 60°C operating range and a compact wall-mount design suit it to demanding field and control-cabinet deployments. Expansion and I/O include 4 digital inputs, 4 digital outputs, 2 USB 3.0 and 4 USB 2.0 ports, VGA and HDMI outputs, a CFast slot and an SD slot, with a spare SODIMM slot for memory upgrades up to 32 GB.

Features

- Fanless box-type design for reliable operation without moving parts
- 11th Gen (Tiger Lake) Intel processor platform
- Ten Gigabit Ethernet ports for multi-network and segmented deployments
- Software-selectable RS-232/422/485 serial ports for legacy device connectivity
- Compact size to fit most field applications
- Wall-mount design
- Wide -30 to 60°C operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: Intel Celeron 6305E, 1.80 GHz base, 2.80 GHz max, 12M cache
- Memory: 8 GB DDR4 pre-installed, 1 x SODIMM DDR4 slot, up to 32 GB
- Network: 10 x Gigabit Ethernet LAN ports
- Serial: 2 x software-selectable RS-232/422/485 ports
- Digital I/O: 4 x DIs, 4 x DOs
- USB: 2 x USB 3.0, 4 x USB 2.0
- Display: 1 x VGA, 1 x HDMI
- Storage: 1 x CFast slot (SATAIII), 1 x SD slot (SD 3.0)
- Power input: 12/24 VDC
- Operating temperature: -30 to 60°C

FAQs

Q: What processor and memory does the BXP-C100-C1-8L-T include?
A: It includes an Intel Celeron 6305E processor (1.80 GHz base, 2.80 GHz max) and 8 GB of DDR4 memory pre-installed.

Q: Can the memory be upgraded?
A: Yes. It has one SODIMM DDR4 slot that supports up to 32 GB.

Q: How many network and serial ports does it have?
A: It has 10 Gigabit Ethernet LAN ports and 2 software-selectable RS-232/422/485 serial ports.

Q: What power input does it use?
A: It accepts a 12/24 VDC power input.

Q: What operating temperature range is supported?
A: The unit operates from -30 to 60°C.

Q: What storage and display options are available?
A: Storage is via a CFast slot (SATAIII) and an SD slot (SD 3.0). Display outputs are 1 x VGA and 1 x HDMI.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
