Moxa BXP-C100-C1-2L3C-T | BXP-C100 Fanless Box PC, Celeron 6305E, 8GB, 4 LAN

Authorised Moxa Partner

SKU:BXP-C100-C1-2L3C-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

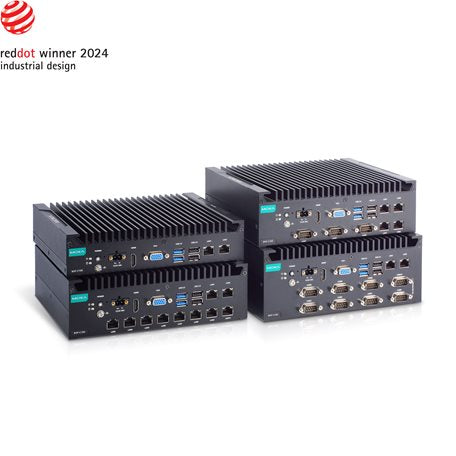

The Moxa BXP-C100-C1-2L3C-T is a fanless industrial box computer built on an 11th Gen Intel Tiger Lake platform, designed for edge computing, machine control and data acquisition in demanding environments. This variant pairs an Intel Celeron 6305E processor with 8 GB RAM, 4 Gigabit LAN ports and 5 software-selectable serial ports, with no pre-installed operating system.

It adds 4 digital inputs and 4 digital outputs, 4 USB 2.0 and 2 USB 3.0 ports, and dual VGA and HDMI video outputs. Storage expands through CFast and SD slots, and the 12/24 VDC power input and wide temperature (-T) rating suit factory floors, transport and utility installations.

Features

- 11th Gen Intel Core (Tiger Lake) processor platform
- Fanless design for reliable industrial operation
- Multiple LAN and serial ports for industrial connectivity
- Dual video outputs (VGA and HDMI)
- Wide operating temperature range (-T model)
- Digital I/O for direct connection to sensors and actuators

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Celeron 6305E
- RAM: 8 GB
- Storage slots: 1 x CFast, 1 x SD
- LAN: 4 x 10/100/1000 Mbps (RJ45)
- Serial ports: 5 x RS-232/422/485, software selectable (DB9 male)
- USB: 4 x USB 2.0, 2 x USB 3.0
- Digital I/O: 4 x DI, 4 x DO
- Video outputs: 1 x VGA, 1 x HDMI
- Power input: 12/24 VDC
- Weight: 2,208 g (4.86 lb)
- No pre-installed operating system
- Wide temperature model (-T)

FAQs

Q: Does the BXP-C100-C1-2L3C-T come with an operating system?
A: No. This model ships without a pre-installed operating system, so you can install the OS that suits your application.

Q: What serial interfaces does this box computer provide?
A: It has 5 DB9 male serial ports, each software selectable between RS-232, RS-422 and RS-485.

Q: What storage options are available?
A: The unit has one CFast slot and one SD slot for storage.

Q: What video outputs are supported?
A: It provides one VGA output and one HDMI output for dual display connectivity.

Q: What power input does it accept?
A: It accepts a 12/24 VDC power input.

Q: What does the -T suffix mean?
A: The -T suffix denotes the wide operating temperature version of the BXP-C100 series.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
