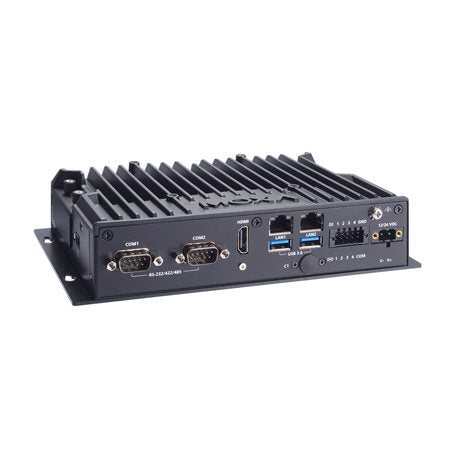

Moxa BXP-A101-E4-T | BXP-A101 Fanless Box Computer, Atom x6425E, 2 LAN

Authorised Moxa Partner

SKU:BXP-A101-E4-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa BXP-A101-E4-T is a fanless industrial box computer built around a quad-core Intel Atom x6425E processor (2.00 GHz, 1.5 MB cache). This wall-mount model combines 2 Gigabit LAN ports, 2 software-selectable RS-232/422/485 serial ports, 4 digital inputs and 4 digital outputs, and operates across a -30 to 70°C temperature range, suiting field automation, data acquisition and edge computing deployments.

It ships with 8 GB DDR4 pre-installed and a single SODIMM slot that supports up to 32 GB. Storage is handled by CFast and SD slots behind a removable cover for easy maintenance, with HDMI output, 2 USB 3.0 ports and an mPCIe slot for expansion. It is powered from a 12/24 VDC input and is supplied as a wall-mount unit without an M.2 slot or DIN-rail kit.

Features

- Fanless box-type design for silent, dust-resistant operation
- Quad-core Intel Atom x6425E processor
- Compact size to fit most field applications
- External dual storage behind a removable cover for easy maintenance
- Wide -30 to 70°C operating temperature range
- Software-selectable RS-232/422/485 serial ports for flexible device connectivity

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: Intel Atom x6425E, quad-core, 2.00 GHz, 1.5 MB cache
- Memory: 8 GB DDR4 pre-installed, 1 x SODIMM DDR4 slot, up to 32 GB
- LAN: 2 x 10/100/1000 Mbps ports
- Serial: 2 x software-selectable RS-232/422/485 ports
- Digital I/O: 4 x digital inputs, 4 x digital outputs
- USB: 2 x USB 3.0 ports
- Display: 1 x HDMI port
- Storage: 1 x CFast slot (SATA III), 1 x SD slot (SD 3.0, SDHC/SDXC)
- Expansion: 1 x mPCIe slot
- Power input: 12/24 VDC
- Operating temperature: -30 to 70°C
- Dimensions: 207 x 116.1 x 44.5 mm
- Built-in RTC and watchdog timer (WDT)

FAQs

Q: Which processor does the BXP-A101-E4-T use?
A: It uses a quad-core Intel Atom x6425E processor running at 2.00 GHz with 1.5 MB cache.

Q: How much memory is included and can it be expanded?
A: It comes with 8 GB DDR4 pre-installed and has a single SODIMM DDR4 slot that supports up to 32 GB.

Q: What serial interfaces does it support?
A: It has 2 software-selectable RS-232/422/485 serial ports, along with 4 digital inputs and 4 digital outputs for I/O connectivity.

Q: What storage options are available?
A: Storage is provided by one CFast slot (SATA III) and one SD slot (SD 3.0, SDHC/SDXC), both accessible behind a removable cover.

Q: What is the operating temperature range?
A: It operates from -30 to 70°C, which suits unconditioned cabinets and harsh field environments.

Q: Does this model include a DIN-rail kit or M.2 slot?
A: No. This variant is a wall-mount box without an M.2 slot or DIN-rail kit. Expansion is via the mPCIe slot.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
