Description

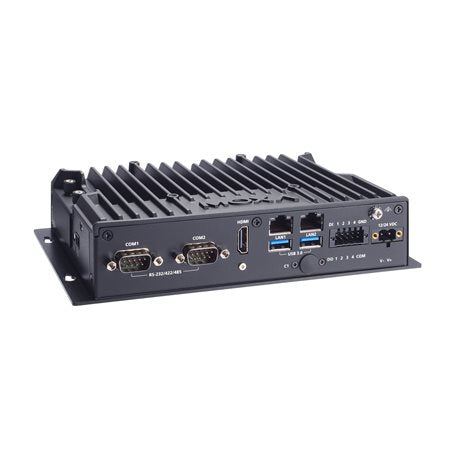

The Moxa BXP-A101-E4-DR-T is a fanless DIN-rail box computer built on a quad-core Intel Atom x6425E processor running at 2.00 GHz. It suits field and industrial automation deployments that need an x86 platform in a compact metal housing, with a wide -30 to 70°C operating range and 12/24 VDC power input.

Connectivity includes dual Gigabit Ethernet LAN ports, two software-selectable RS-232/422/485 serial ports, four digital inputs and four digital outputs, two USB 3.0 ports and an HDMI video output. External dual storage with CFast and SD slots sits behind a removable cover for easy maintenance, and a single SODIMM DDR4 slot supports up to 32 GB of memory.

Features

- Fanless box-type computer design for reliable, quiet operation
- Intel Atom X Series quad-core processor
- Compact size to fit most field applications
- External dual storage with removable cover for easy maintenance
- Wide -30 to 70°C operating temperature range
- DIN-rail mounting for control cabinet installation

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: Intel Atom x6425E, quad-core, 1.5 MB cache, 2.00 GHz
- Memory: 1 x SODIMM DDR4 slot, up to 32 GB
- LAN: 2 x Gigabit Ethernet ports
- Serial: 2 x software-selectable RS-232/422/485 ports
- Digital I/O: 4 x DI, 4 x DO
- USB: 2 x USB 3.0 ports
- Video: 1 x HDMI output
- Storage slots: 1 x CFast, 1 x SD
- Power input: 12/24 VDC
- Operating temperature: -30 to 70°C
- Housing: metal, IP20
- Dimensions: 186 x 121 x 46.7 mm
- Weight: 1,500 g
- Mounting: DIN-rail

FAQs

Q: What processor does the BXP-A101-E4-DR-T use?
A: It uses a quad-core Intel Atom x6425E processor with 1.5 MB cache and a 2.00 GHz clock speed.

Q: How much memory does it support?
A: It has one SODIMM DDR4 slot supporting up to 32 GB of memory.

Q: What storage options are available?
A: It provides two external storage slots, one CFast and one SD, accessible behind a removable cover.

Q: What serial and I/O interfaces are included?
A: It has two software-selectable RS-232/422/485 serial ports, four digital inputs, four digital outputs, two USB 3.0 ports and two Gigabit Ethernet LAN ports.

Q: What power supply and operating temperature does it support?
A: It accepts a 12/24 VDC power input and operates across a -30 to 70°C temperature range.

Q: How is it mounted?
A: It is designed for DIN-rail mounting and has a metal housing measuring 186 x 121 x 46.7 mm.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
