Moxa BXP-A101-E2-T | BXP-A101 Industrial Box Computer, Atom x6211E, 2 LAN

Authorised Moxa Partner

SKU:BXP-A101-E2-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

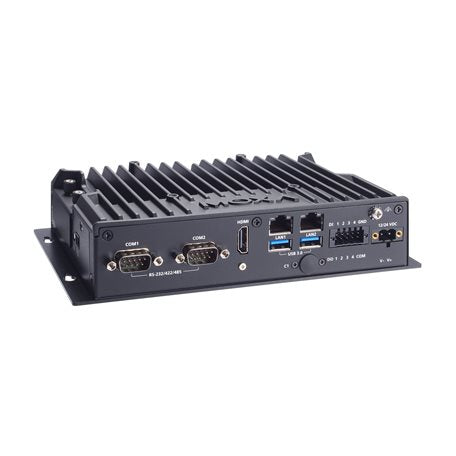

The Moxa BXP-A101-E2-T is a fanless industrial box computer built on an Intel Atom x6211E processor. This E2 wall-mount variant has no M.2 slot and operates from -30 to 70°C, making it suited to harsh field deployments such as industrial automation, data acquisition and edge gateway applications. It combines dual Gigabit LAN, two software-selectable RS-232/422/485 serial ports and 4 DI / 4 DO in a compact metal housing.

Expansion and storage include a CFast slot, an SD slot and an mPCIe slot, with two USB 3.0 ports and an HDMI output for local setup and display. A removable cover allows external dual storage to be serviced easily, and a built-in TPM 2.0 module supports platform security. Power is supplied from a 12/24 VDC Euroblock terminal.

Features

- Fanless box-type design for silent, reliable operation
- Intel Atom x6211E processor for low-power edge computing
- Compact size fits most field applications
- Wide -30 to 70°C operating temperature range
- Dual Gigabit LAN for network segmentation or redundancy
- Software-selectable serial ports for flexible device connectivity
- Onboard 4 DI / 4 DO for direct sensor and actuator integration
- External dual storage with removable cover for easy maintenance
- Built-in TPM 2.0 module for platform security
- Wall-mount form factor

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: Intel Atom x6211E, dual core, 1.5M cache, 1.30 GHz
- LAN: 2 x Gigabit (10/100/1000 Mbps)
- Serial: 2 x software-selectable RS-232/422/485
- Digital I/O: 4 x DI, 4 x DO (spring-type Euroblock terminal, dry contact and wet contact NPN)
- USB: 2 x USB 3.0
- Video: 1 x HDMI
- Storage slots: 1 x CFast (SATA III), 1 x SD (SD 3.0, SDHC/SDXC)
- Expansion: 1 x mPCIe slot, no M.2 slot
- Power input: 12/24 VDC via screw-fastened Euroblock terminal
- Power consumption: 50 W
- Housing: metal, IP20
- Dimensions: 207 x 116.1 x 44.5 mm
- Weight: 1,225 g
- Operating temperature: -30 to 70°C
- Storage temperature: -40 to 70°C
- Humidity: 5 to 95% (non-condensing)
- Mounting: wall-mount

FAQs

Q: What processor does the BXP-A101-E2-T use?
A: It uses an Intel Atom x6211E dual-core processor with 1.5M cache running at 1.30 GHz.

Q: What operating temperature range does it support?
A: It operates from -30 to 70°C, suitable for harsh industrial and outdoor cabinet environments.

Q: Which serial interfaces are available?
A: There are two serial ports, each software-selectable between RS-232, RS-422 and RS-485.

Q: What power input does it require?
A: It accepts 12/24 VDC through a screw-fastened Euroblock terminal.

Q: Does this model have an M.2 slot?
A: No. This E2 variant has no M.2 slot. Expansion is provided by one mPCIe slot, and storage by CFast and SD slots.

Q: How is the unit mounted?
A: It is a wall-mount box computer in a compact metal housing measuring 207 x 116.1 x 44.5 mm.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
