Moxa BXP-A101-E2-DR-T | BXP-A101 DIN-Rail Box Computer, Atom x6211E, 8GB

Authorised Moxa Partner

SKU:BXP-A101-E2-DR-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

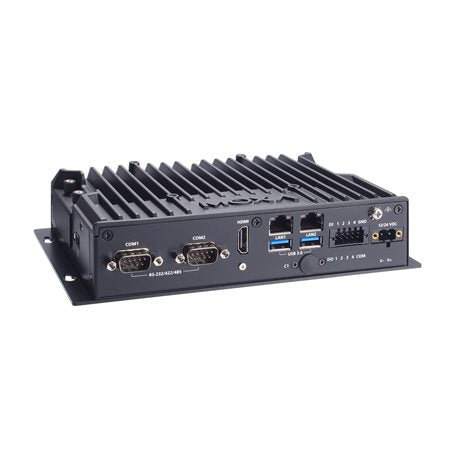

The Moxa BXP-A101-E2-DR-T is a fanless DIN-rail box computer built around a dual-core Intel Atom x6211E processor with 8 GB of DDR4 memory pre-installed. It is designed for industrial automation, data acquisition and edge computing deployments where a compact, silent x86 platform is needed inside a control cabinet. Dual Gigabit LAN ports, two software-selectable serial ports and 4 DI / 4 DO channels let it connect directly to field devices, while the -30 to 70°C operating range suits harsh environments.

For local connectivity and expansion, it provides two USB 3.0 ports, an HDMI output, and CFast and SD storage slots, plus a free SODIMM slot supporting up to 32 GB of memory. It runs from a 12/24 VDC supply and ships with no operating system pre-installed, so you can deploy the OS and software stack your application requires. Compact dimensions of 186 x 121 x 46.7 mm and default DIN-rail mounting simplify installation in space-constrained enclosures.

Features

- Fanless box-type computer design for silent, low-maintenance operation
- Intel Atom x6211E processor for x86 industrial and edge workloads
- Dual Gigabit LAN ports for network segmentation or redundancy
- Software-selectable RS-232/422/485 serial ports for legacy and field devices
- Onboard 4 DI and 4 DO for direct machine and sensor connections
- Wide -30 to 70°C operating temperature range
- DIN-rail mounting as standard for compact cabinet installation
- Expandable memory via a free SODIMM slot, up to 32 GB

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Atom x6211E, dual-core, 1.30 GHz, 1.5 MB cache
- Memory: 8 GB DDR4 pre-installed, 1 x SODIMM DDR4 slot, up to 32 GB
- LAN: 2 x 10/100/1000 Mbps Ethernet
- Serial: 2 x software-selectable RS-232/422/485
- Digital I/O: 4 DI, 4 DO
- USB: 2 x USB 3.0
- Video: 1 x HDMI
- Storage slots: 1 x CFast, 1 x SD
- Power input: 12/24 VDC
- Operating temperature: -30 to 70°C
- Mounting: DIN-rail
- Dimensions: 186 x 121 x 46.7 mm
- Operating system: none pre-installed

FAQs

Q: Does the Moxa BXP-A101-E2-DR-T come with an operating system?
A: No. It ships without a pre-installed operating system, so you can install the OS that suits your application.

Q: How much memory does it have and can it be upgraded?
A: It comes with 8 GB of DDR4 pre-installed and has one SODIMM DDR4 slot that supports up to 32 GB.

Q: What serial interfaces does it support?
A: It has two serial ports that are software-selectable between RS-232, RS-422 and RS-485.

Q: What is the operating temperature range?
A: It operates from -30 to 70°C, making it suitable for demanding industrial environments.

Q: How is it powered and mounted?
A: It accepts a 12/24 VDC power input and is DIN-rail mounted by default.

Q: What storage and display options are available?
A: It provides CFast and SD card slots for storage, and one HDMI port for display output.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
