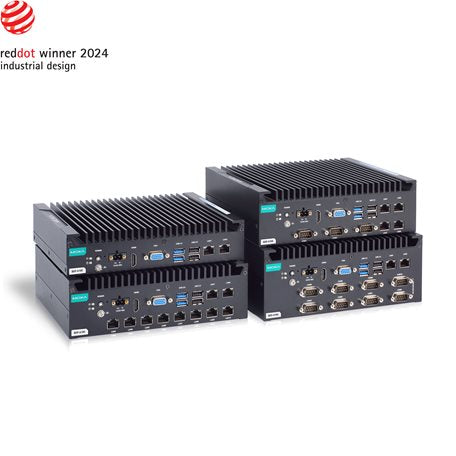

Moxa BXP-A100-E4-T-Win10 | BXP-A100 Fanless Box PC, Atom x6425E, 8GB, 64GB CFast, Win10

Authorised Moxa Partner

SKU:BXP-A100-E4-T-Win10

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa BXP-A100-E4-T-Win10 is a fanless industrial box PC built around a quad-core Intel Atom x6425E processor, supplied with 8GB DDR4 memory and a 64GB CFast card with a pre-installed Windows 10 image. It offers 2 LAN ports, 2 serial ports, 6 USB ports and 4 digital I/O channels, with VGA and HDMI display outputs, making it a capable x86 platform for field automation and edge computing deployments.

Powered from a 12/24 VDC input via a screw-fastened Euroblock terminal, the BXP-A100 Series delivers a wide -30 to 60°C operating temperature range in a compact 210 x 166 x 48 mm chassis. Built-in 1.5 kV magnetic isolation protection and a sealed, fanless design suit demanding industrial environments, while the SODIMM slot supports memory expansion up to 32GB.

Features

- Fanless box-type computer design
- Intel Atom X Series quad-core processor
- Rich I/O with serial, LAN, USB and digital I/O interfaces
- Compact size to fit most field applications
- 1.5 kV built-in magnetic isolation protection
- Wide -30 to 60°C operating temperature range
- Windows 10 image pre-installed on CFast storage

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Atom x6425E, quad core, 1.5M cache, 2.00 GHz
- Memory: 8GB DDR4 pre-installed, 1 x SODIMM DDR4 slot (up to 32GB)
- Storage: 64GB CFast card pre-installed, 1 x CFast slot (SATA III), 1 x SD 3.0 slot (SDHC/SDXC)
- Interfaces: 2 x LAN, 2 x serial (DB9 male, 50 bps to 115.2 kbps), 6 x USB, 4 x DIO
- Display outputs: VGA and HDMI
- Operating system: Windows 10 pre-installed
- Input voltage: 12/24 VDC via screw-fastened Euroblock terminal
- Power consumption: 50 W
- Dimensions: 210 x 166 x 48 mm
- Weight: 2,015 g
- Operating temperature: -30 to 60°C

FAQs

Q: What operating system does the BXP-A100-E4-T-Win10 ship with?
A: It is supplied with a Windows 10 image pre-installed on the 64GB CFast card, so it is ready to configure on first power-up.

Q: Can the memory be upgraded?
A: Yes. It ships with 8GB DDR4 and has a single SODIMM DDR4 slot that supports up to 32GB.

Q: What power supply does this box PC require?
A: It runs from a 12/24 VDC input via a screw-fastened Euroblock terminal. Power consumption is 50 W.

Q: What display outputs are available?
A: The unit provides both VGA and HDMI display outputs.

Q: Does it have a fan?
A: No. The BXP-A100 Series uses a fanless design, which suits dusty or vibration-prone industrial environments.

Q: What storage options does this model support?
A: It includes a pre-installed 64GB CFast card and offers a CFast slot (SATA III) plus an SD 3.0 slot supporting SDHC and SDXC cards.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
