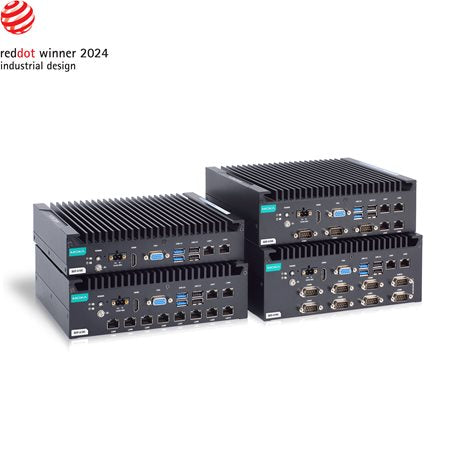

Moxa BXP-A100-E4-T | BXP-A100 Fanless Box PC, Atom x6425E, 8GB, 2 LAN

Authorised Moxa Partner

SKU:BXP-A100-E4-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa BXP-A100-E4-T is a fanless industrial box computer built on the quad-core Intel Atom x6425E processor with 8 GB DDR4 memory. It provides 2 Gigabit LAN ports, 2 software-selectable RS-232/422/485 serial ports and 4 DI/4 DO, making it well suited to field automation, edge data collection and protocol conversion in compact installations. This base model ships with no pre-installed operating system.

VGA and HDMI video outputs, six USB ports, CFast and SD storage slots and TPM v2.0 round out the I/O. It runs from 12/24 VDC across a -30 to 60°C operating range, and the small metal housing is wall-mountable with the supplied kit.

Features

- Fanless box-type design for reliable, low-maintenance operation
- Compact, wall-mountable size to suit most field applications
- Wide -30 to 60°C operating temperature range
- Built-in RTC with lithium-battery backup and built-in watchdog timer (WDT)
- Dual Gigabit LAN, dual serial and 4 DI/4 DO for flexible device connectivity
- Package includes a 2-pin DC terminal block, a 10-pin DI/DO terminal block and a wall-mounting kit

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Atom x6425E, quad core, 2.00 GHz, 1.5M cache
- Memory: 8 GB DDR4 (1 x SODIMM slot, up to 32 GB maximum)
- Storage slots: 1 x CFast (SATA III), 1 x SD 3.0 (SDHC/SDXC)
- Ethernet: 2 x 10/100/1000 Mbps (RJ45)
- Serial: 2 x RS-232/422/485 software selectable (DB9 male)
- USB: 2 x USB 3.0 Type-A, 4 x USB 2.0 Type-A
- Digital I/O: 4 x DI, 4 x DO
- Video: 1 x VGA, 1 x HDMI
- Security: TPM v2.0
- Power input: 12/24 VDC, 50 W
- Operating temperature: -30 to 60°C
- Housing: metal, IP20
- Dimensions: 210 x 166 x 48 mm
- Operating system: none pre-installed

FAQs

Q: Does the Moxa BXP-A100-E4-T come with an operating system?
A: No. This is the base model with no pre-installed operating system, so you install your preferred OS, for example from the CFast or SD storage.

Q: What storage options does it support?
A: It has one CFast (SATA III) slot and one SD 3.0 slot supporting SDHC and SDXC cards.

Q: Can the memory be upgraded?
A: Yes. It ships with 8 GB DDR4 and has one SODIMM slot that supports up to 32 GB.

Q: What serial interfaces are available?
A: Two DB9 male serial ports, each software selectable between RS-232, RS-422 and RS-485.

Q: What power supply does it require?
A: It accepts 12/24 VDC input via the supplied 2-pin DC terminal block, with a rated power of 50 W.

Q: Can it be installed in a cold or hot environment?
A: Yes. The operating temperature range is -30 to 60°C, and the fanless design avoids moving parts.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
