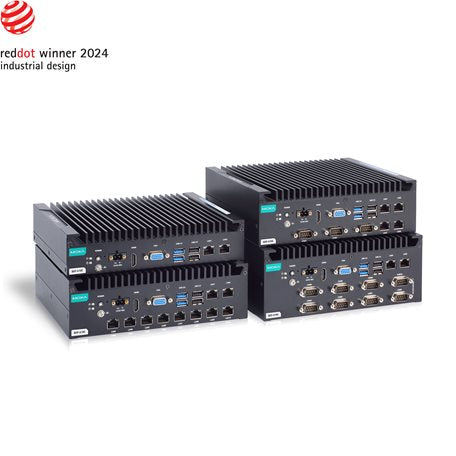

Moxa BXP-A100-E4-8L-T | BXP-A100 Fanless Box PC, Atom x6425E, 8GB, 10 LAN

Authorised Moxa Partner

SKU:BXP-A100-E4-8L-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa BXP-A100-E4-8L-T is a fanless industrial box computer built on a quad-core Intel Atom x6425E processor with 8 GB DDR4 memory. It provides 10 Gigabit LAN ports, 2 software-selectable RS-232/422/485 serial ports, 4 digital inputs and 4 digital outputs, plus VGA and HDMI video outputs. A 12/24 VDC power input and a -30 to 60°C operating range make it suited to field and factory automation deployments.

Dual storage with a CFast slot and an SD slot allows easy expansion, while built-in TPM 2.0 helps protect the platform from unauthorised access. The BXP-A100 series is DNV, CID2, ATEX and IECEx certified, and the unit supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional (64-bit) and Linux.

Features

- Fanless box-type design with a compact size for field applications
- Dual-storage design (CFast and SD) for easy storage expansion
- Battery fastener cover secures the battery in place in harsh operating environments
- Built-in TPM 2.0 module protects the platform from unauthorised access
- DNV, CID2, ATEX and IECEx certified (BXP-A100 series)
- Communication interfaces on the front and rear panels for easy access
- Supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional (64-bit) and Linux

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Atom x6425E, quad core, 1.5M cache, 2.00 GHz
- Memory: 8 GB DDR4, 1 x SODIMM DDR4 slot, up to 32 GB maximum
- Graphics: Intel UHD Graphics
- LAN: 10 x auto-sensing 10/100/1000 Mbps (RJ45)
- Serial: 2 x RS-232/422/485, software-selectable
- Digital I/O: 4 x DI, 4 x DO
- USB: 2 x USB 3.0 and 4 x USB 2.0 (Type-A)
- Video: 1 x VGA, 1 x HDMI
- Storage: 1 x CFast slot (SATA III), 1 x SD slot (SDHC/SDXC)
- Power input: 12/24 VDC via screw-fastened Euroblock terminal, 50 W
- Housing: metal, IP20, fanless, wall-mount
- Weight: 2,355 g
- Operating temperature: -30 to 60°C
- Security: built-in TPM 2.0

FAQs

Q: How many network ports does the BXP-A100-E4-8L-T have?
A: It provides 10 auto-sensing 10/100/1000 Mbps RJ45 LAN ports.

Q: What operating systems does this box computer support?
A: It supports Windows 10 IoT Enterprise LTSC 2021, Windows 11 Professional (64-bit) and Linux.

Q: What storage options are available?
A: It has one CFast slot (SATA III) and one SD slot (SDHC/SDXC) for dual-storage expansion.

Q: Can the memory be upgraded?
A: It ships with 8 GB DDR4 and has a single SODIMM DDR4 slot that supports up to 32 GB.

Q: What power input does it require?
A: It runs from a 12/24 VDC supply connected to a screw-fastened Euroblock terminal, with a 50 W rating.

Q: Is it suitable for harsh environments?
A: Yes. It is a fanless, metal-housed unit rated for -30 to 60°C operation and carries DNV, CID2, ATEX and IECEx certifications.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
