Moxa BXP-A100-E4-8C-T | BXP-A100 Fanless Box Computer, Atom x6425E, 8GB, 10 COM

Authorised Moxa Partner

SKU:BXP-A100-E4-8C-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

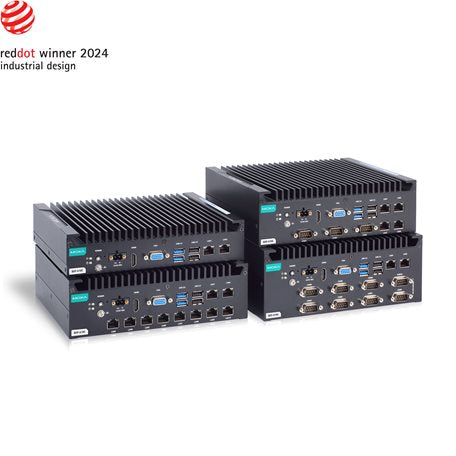

The Moxa BXP-A100-E4-8C-T is a fanless x86 industrial box computer built on an Intel Atom x6425E quad-core processor with 8 GB DDR4 memory. This 8C variant provides 10 serial COM ports, dual LAN, and a -30 to 60°C operating range, making it well suited to serial-heavy field applications and compact industrial deployments. It ships without a pre-installed operating system.

The unit combines USB 3.0 and USB 2.0 ports, four digital inputs and four digital outputs, and VGA plus HDMI display outputs. Dual-storage expansion is provided through CFast and SD slots, and the 12/24 VDC power input suits typical industrial power environments. The BXP-A100 series carries DNV, CID2, ATEX and IECEx certifications for demanding installations.

Features

- Fanless box-type design for reliable operation
- Intel Atom X Series processor for efficient industrial computing
- Up to 10 serial ports for connecting legacy and field devices
- Compact size to fit most field applications
- DNV, CID2, ATEX and IECEx certified
- 30 to 60°C wide operating temperature range
- Dual-storage design with CFast and SD slots for easy storage expansion

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: Intel Atom x6425E quad-core, 2.00 GHz
- Memory: 8 GB DDR4
- Serial ports: 10 x COM
- LAN: 2 x LAN ports
- USB: 2 x USB 3.0 and 4 x USB 2.0
- Digital I/O: 4 x digital inputs, 4 x digital outputs
- Display: 1 x VGA and 1 x HDMI
- Storage: 1 x CFast slot (SATA III) and 1 x SD slot (SD 3.0, SDHC/SDXC)
- Power input: 12/24 VDC
- Operating temperature: -30 to 60°C (wide temperature model)
- Operating system: none pre-installed

FAQs

Q: Does the BXP-A100-E4-8C-T come with an operating system?
A: No. This model has no pre-installed operating system, so you can deploy the OS that suits your application.

Q: How many serial ports does this model provide?
A: The 8C variant provides 10 serial COM ports, adding eight extra COM ports for serial-intensive deployments.

Q: What is the operating temperature range?
A: The -T wide temperature model operates from -30 to 60°C.

Q: What storage options are available?
A: The unit has one CFast slot (SATA III) and one SD slot (SD 3.0, SDHC/SDXC) for dual-storage expansion.

Q: What power input does it accept?
A: It accepts a 12/24 VDC power input.

Q: Which display outputs are supported?
A: It provides one VGA and one HDMI output for connecting local displays.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
