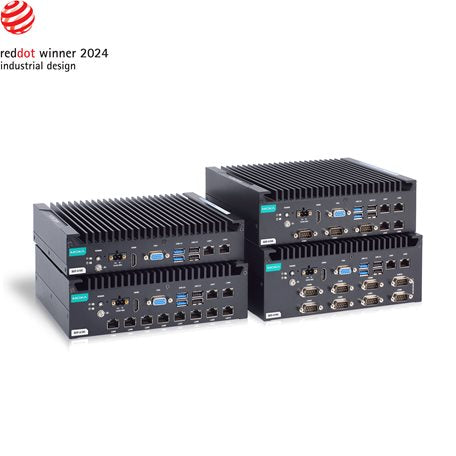

Moxa BXP-A100-E4-2L3C-T | BXP-A100 Fanless Box Computer, Atom x6425E, 8GB, 4 LAN

Authorised Moxa Partner

SKU:BXP-A100-E4-2L3C-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa BXP-A100-E4-2L3C-T is a fanless industrial box computer built around a quad-core Intel Atom x6425E processor with 8 GB of DDR4 memory pre-installed. It combines 4 Gigabit LAN ports, 5 software-selectable RS-232/422/485 serial ports and 4 DI/4 DO digital I/O channels, making it well suited to industrial gateway, data acquisition and edge control applications. This -T model operates from -30 to 60°C.

Expansion and display options include 4 USB 2.0 and 2 USB 3.0 ports, VGA and HDMI outputs, a CFast slot, an SD slot and a spare DDR4 SODIMM slot supporting up to 32 GB. The metal wall-mount housing runs from a 12/24 VDC input via a screw-fastened Euroblock terminal.

Features

- Intel Atom x6000E series quad-core processor
- Fanless wall-mount industrial design with metal housing
- Wide -30 to 60°C operating temperature range
- 4 Gigabit LAN ports and 5 serial ports for industrial connectivity
- 4 DI and 4 DO channels for direct field I/O
- Dual display outputs with VGA and HDMI
- Expandable memory up to 32 GB via SODIMM slot

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Atom x6425E (quad core, 1.5M cache, 2.00 GHz)
- Memory: 8 GB DDR4 pre-installed; 1 x SODIMM DDR4 slot, up to 32 GB
- Storage: 1 x CFast slot (SATA III), 1 x SD slot (SD 3.0, SDHC/SDXC)
- LAN: 4 x 10/100/1000 Mbps RJ45
- Serial: 5 x RS-232/422/485 (DB9 male), software selectable
- USB: 4 x USB 2.0 and 2 x USB 3.0
- Digital I/O: 4 x DI, 4 x DO
- Display: 1 x VGA, 1 x HDMI
- Power input: 12/24 VDC via screw-fastened Euroblock terminal
- Power consumption: 50 W
- Housing: metal, IP20
- Weight: 2,208 g
- Operating temperature: -30 to 60°C

FAQs

Q: How much memory does the BXP-A100-E4-2L3C-T include and can it be expanded?
A: It ships with 8 GB of DDR4 pre-installed and has one SODIMM DDR4 slot that supports up to 32 GB.

Q: What storage options are available?
A: The unit provides one CFast slot (SATA III) and one SD slot supporting SD 3.0, SDHC and SDXC cards.

Q: What power input does it require?
A: It runs from a 12/24 VDC input through a screw-fastened Euroblock terminal, with a power consumption of 50 W.

Q: What is the operating temperature range?
A: The -T model operates from -30 to 60°C, suitable for demanding industrial environments.

Q: How many serial and network ports does it have?
A: It has 4 x 10/100/1000 Mbps RJ45 LAN ports and 5 x DB9 male serial ports that are software selectable between RS-232, RS-422 and RS-485.

Q: Which display outputs are supported?
A: It provides one VGA and one HDMI output for connecting local displays.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
