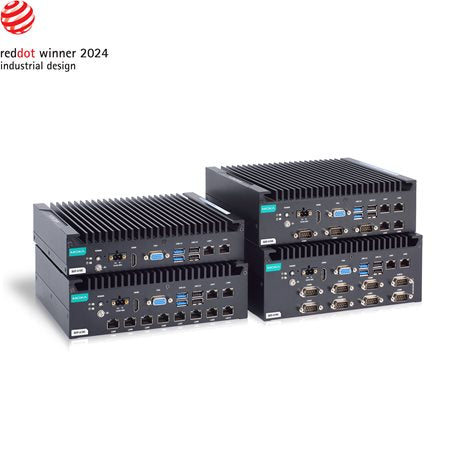

Moxa BXP-A100-E2-T-Win10 | BXP-A100 Fanless Box PC, Atom x6211E, 8GB, Win10 IoT

Authorised Moxa Partner

SKU:BXP-A100-E2-T-Win10

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa BXP-A100-E2-T-Win10 is a fanless box type industrial computer built on a dual-core Intel Atom x6211E processor with 8 GB DDR4 memory. It is a wide-temperature (-T) model with a 12/24 VDC power input and ships with Windows 10 IoT Enterprise LTSC 2021 preinstalled, making it ready to deploy in factory automation, machine control and edge data collection applications.

I/O includes 2 Gigabit LAN ports, 2 software-selectable RS-232/422/485 serial ports, 4 digital inputs and 4 digital outputs, 2 x USB 3.0, 4 x USB 2.0, plus VGA and HDMI video outputs. A CFast slot and SD 3.0 slot provide storage options, and a built-in RTC and watchdog timer support unattended operation. It belongs to the Moxa BXP-A100 Series of compact x86 computers.

Features

- Fanless, compact box design for industrial deployment
- Wide-temperature operation (-T variant)
- Rich I/O combining serial, DIO, LAN, USB, VGA and HDMI
- Windows 10 IoT Enterprise LTSC 2021 preinstalled for fast deployment
- Built-in RTC with lithium-battery backup and a watchdog timer for automatic reboot

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Atom x6211E, dual core, 1.5M cache, 1.30 GHz
- Memory: 8 GB DDR4 pre-installed, 1 x SODIMM DDR4 slot, up to 32 GB
- Storage: 1 x CFast slot (SATA III) and 1 x SD 3.0 slot (SDHC/SDXC)
- LAN: 2 x Gigabit (10/100/1000 Mbps)
- Serial: 2 x RS-232/422/485, DB9 male, software selectable, 1.5 kV magnetic isolation
- Digital I/O: 4 x DI (dry contact), 4 x DO (sink, 200 mA per channel, 0 to 24 VDC), spring-type Euroblock terminal
- USB: 2 x USB 3.0, 4 x USB 2.0
- Video: 1 x VGA, 1 x HDMI
- Power input: 12/24 VDC via screw-fastened Euroblock terminal, 50 W power consumption
- Dimensions: 210 x 166 x 48 mm, weight 2,015 g
- Operating system: Windows 10 IoT Enterprise LTSC 2021 64-bit preinstalled
- Wide-temperature (-T) model
- Built-in RTC and watchdog timer (WDT)
- Certifications: RoHS, CRoHS, WEEE, EN 55032/35, FCC Part 15B Class A, BSMI

FAQs

Q: Does the BXP-A100-E2-T-Win10 come with an operating system?
A: Yes. It ships with Windows 10 IoT Enterprise LTSC 2021 64-bit preinstalled.

Q: Can the memory be upgraded?
A: Yes. It includes 8 GB DDR4 pre-installed and has one SODIMM DDR4 slot that supports up to 32 GB.

Q: What serial interfaces does it support?
A: It has 2 DB9 male serial ports that are software selectable between RS-232, RS-422 and RS-485, with 1.5 kV magnetic isolation.

Q: What power supply does it require?
A: It accepts a 12/24 VDC input through a screw-fastened Euroblock terminal, with a power consumption of 50 W.

Q: What storage options are available?
A: It has one CFast slot (SATA III) and one SD 3.0 slot supporting SDHC and SDXC cards.

Q: What does the -T in the model name mean?
A: The -T suffix denotes the wide-temperature variant of the BXP-A100 Series, designed for harsher operating environments than standard models.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
