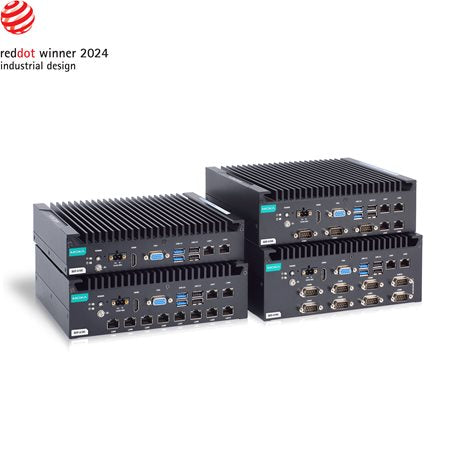

Moxa BXP-A100-E2-T | BXP-A100 Fanless Box Computer, Atom x6211E, 8GB, 2 LAN

Authorised Moxa Partner

SKU:BXP-A100-E2-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa BXP-A100-E2-T is a fanless industrial box computer built on a dual-core Intel Atom x6211E processor with 8GB of pre-installed DDR4 memory. This variant provides 2 Gigabit LAN ports, 2 software-selectable RS-232/422/485 serial ports, 4 digital inputs and 4 digital outputs, with VGA and HDMI display outputs. It runs from a 12/24 VDC input, operates from -30 to 60°C and is supplied without a pre-installed operating system in a compact 48 mm chassis.

Storage is handled by a CFast slot and an SD 3.0 slot, with a SODIMM DDR4 slot allowing memory expansion up to 32GB. Six USB ports, a built-in RTC and a watchdog timer suit it to factory automation, data acquisition and edge computing deployments. The BXP-A100 Series supports wall mounting with an optional kit.

Features

- Wide operating temperature range of -30 to 60°C
- Fanless design with no moving parts
- Dual storage design (CFast and SD) for easy storage expansion
- Communication interfaces on the front and rear panels for easy access
- Wall mounting with optional kit
- 1.5 kV magnetic isolation protection on the LAN ports
- Built-in watchdog timer for automatic reboot
- RoHS, CRoHS and WEEE compliant

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Atom x6211E, dual core, 1.5M cache, 1.30 GHz
- Memory: 8GB DDR4 pre-installed, 1 x SODIMM DDR4 slot, up to 32GB
- Storage slots: 1 x CFast (SATA III) and 1 x SD 3.0 (SDHC/SDXC)
- 2 x Gigabit Ethernet LAN (10/100/1000 Mbps)
- 2 x software-selectable RS-232/422/485 serial ports (DB9 male)
- 4 x digital inputs and 4 x digital outputs (spring-type Euroblock)
- 2 x USB 3.0 and 4 x USB 2.0 ports
- 1 x VGA and 1 x HDMI output
- Power input: 12/24 VDC (screw-fastened Euroblock), 50W power consumption
- Dimensions: 210 x 166 x 48 mm, weight 2,015 g
- Operating temperature: -30 to 60°C, storage temperature: -40 to 75°C
- Humidity: 5 to 95% non-condensing
- Built-in RTC and watchdog timer
- No pre-installed operating system

FAQs

Q: Does the Moxa BXP-A100-E2-T come with an operating system?
A: No. This model is supplied without a pre-installed OS, so you install the operating system of your choice onto the CFast or SD storage.

Q: How much memory does it support?
A: It ships with 8GB of DDR4 pre-installed and has one SODIMM DDR4 slot that supports up to 32GB.

Q: What storage options are available?
A: The unit has one CFast (SATA III) slot and one SD 3.0 (SDHC/SDXC) slot, allowing dual storage configurations.

Q: What power input does it require?
A: It runs from a 12/24 VDC input via a screw-fastened Euroblock connector, with power consumption of 50W.

Q: What serial and I/O interfaces are included?
A: It includes 2 software-selectable RS-232/422/485 serial ports, 4 digital inputs, 4 digital outputs, 2 Gigabit LAN ports, and 6 USB ports.

Q: Can it be wall mounted?
A: Yes. Wall mounting is supported with an optional mounting kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
