Description

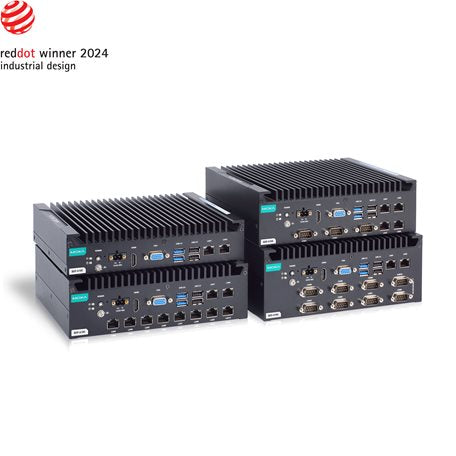

The BXP-A100-E2-8L-T is a fanless x86 industrial box computer built on an Intel Atom x6211E processor with 8 GB DDR4 memory. This 8L variant provides 10 Gigabit LAN ports, making it well suited to industrial gateway, protocol conversion and edge-computing deployments that need many network connections in one compact unit.

It also offers 2 software-selectable RS-232/422/485 serial ports, 4 digital inputs and 4 digital outputs, USB 3.0 and USB 2.0 ports, and VGA and HDMI video outputs. Powered from a 12/24 VDC input and rated for -30 to 60°C operation, it suits control cabinets and harsh environments, with Windows and Linux driver support.

Features

- Fanless design with wide-temperature operation from -30 to 60°C
- 10 Gigabit LAN ports for gateway and edge-computing applications
- Windows 11 IoT Enterprise LTSC 2024, Windows 11 Professional and Windows 10 IoT Enterprise LTSC 2021 images and drivers supported
- Linux drivers supported for Debian 12/11, Ubuntu 22.04 LTS and RHEL 9
- Serial, digital I/O, USB and dual video outputs for flexible device connectivity
- 12/24 VDC input suited to industrial power systems

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Intel Atom x6211E processor
- 8 GB DDR4 memory
- 10 x 10/100/1000 Mbps Ethernet ports (RJ45)
- 2 x RS-232/422/485 serial ports (DB9 male, software selectable)
- 4 x digital inputs, 4 x digital outputs
- 2 x USB 3.0 and 4 x USB 2.0 ports
- 1 x VGA and 1 x HDMI output
- Intel UHD Graphics
- 1 x CFast slot (SATA III) and 1 x SD slot (SD 3.0, SDHC/SDXC)
- 12/24 VDC input via screw-fastened Euroblock terminal
- Power consumption: 50 W
- Operating temperature: -30 to 60°C
- Dimensions: 210 x 166 x 65.5 mm
- Weight: 2,355 g
- Built-in RTC and watchdog timer

FAQs

Q: How many network ports does the BXP-A100-E2-8L-T have?
A: It has 10 x 10/100/1000 Mbps Ethernet ports with RJ45 connectors.

Q: Which operating systems are supported?
A: Windows 11 IoT Enterprise LTSC 2024, Windows 11 Professional and Windows 10 IoT Enterprise LTSC 2021 are supported, along with Linux drivers for Debian 12/11, Ubuntu 22.04 LTS and RHEL 9.

Q: What is the operating temperature range?
A: This model operates from -30 to 60°C, so it suits harsh industrial environments.

Q: What power input does it use?
A: It runs from a 12/24 VDC input through a screw-fastened Euroblock terminal, with power consumption of 50 W.

Q: What storage and video options are available?
A: It provides a CFast slot (SATA III) and an SD slot, with VGA and HDMI video outputs driven by Intel UHD Graphics.

Q: What does the 8L in the model name mean?
A: The 8L variant has 10 LAN ports, 8 GB DDR4 memory and an Intel Atom x6211E processor.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
