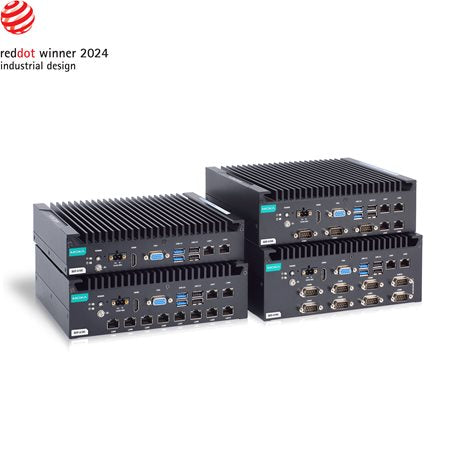

Moxa BXP-A100-E2-8C-T | BXP-A100 Fanless Box PC, Atom x6211E, 8GB, 10 Serial, 2 LAN, -T

Authorised Moxa Partner

SKU:BXP-A100-E2-8C-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa BXP-A100-E2-8C-T is a fanless, wall-mount x86 industrial box computer built on a dual-core Intel Atom x6211E processor with 8 GB DDR4 pre-installed. It provides 10 software-selectable RS-232/422/485 serial ports and 2 LAN ports, and the -T wide-temperature rating supports operation from -30 to 60°C, making it well suited to field and edge applications.

The unit also offers 4 digital inputs and 4 digital outputs, VGA and HDMI display outputs, CFast and SD storage slots, and 12/24 VDC power input via a screw-fastened Euroblock terminal. A compact metal housing suits most field installations, and Windows 11 IoT Enterprise LTSC, Windows 10 IoT Enterprise LTSC and Linux drivers are supported.

Features

- Fanless box-type design for reliable operation without moving parts
- Intel Atom X Series processor
- 10 software-selectable serial ports for connecting multiple field devices
- Compact size to fit most field applications
- Wide operating temperature range of -30 to 60°C
- Series-level DNV, CID2, ATEX and IECEx certifications
- Windows 11 IoT Enterprise LTSC 2024, Windows 11 Professional and Windows 10 IoT Enterprise LTSC 2021 supported
- Linux drivers for Debian 12/11, Ubuntu 22.04 and RHEL 9

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Intel Atom x6211E processor, dual core, 1.5M cache, 1.30 GHz
- 8 GB DDR4 pre-installed, 1 x SODIMM DDR4 slot, up to 32 GB maximum
- 10 x RS-232/422/485 serial ports, software selectable, DB9 male
- 2 x LAN ports
- 2 x USB 3.0 and 4 x USB 2.0 ports
- 4 x digital input, 4 x digital output
- 1 x VGA and 1 x HDMI display output
- 1 x CFast slot (SATA III) and 1 x SD slot (SD 3.0, SDHC/SDXC)
- 12/24 VDC power input via screw-fastened Euroblock terminal
- Power consumption: 50 W
- Operating temperature: -30 to 60°C
- Metal housing, IP20

FAQs

Q: How many serial ports does the BXP-A100-E2-8C-T have?
A: It provides 10 RS-232/422/485 serial ports on DB9 male connectors, with the interface mode selectable in software.

Q: What operating temperature range does the -T model support?
A: The BXP-A100-E2-8C-T operates from -30 to 60°C, suitable for harsh field environments.

Q: What operating systems are supported?
A: Windows 11 IoT Enterprise LTSC 2024, Windows 11 Professional and Windows 10 IoT Enterprise LTSC 2021 are supported, along with Linux drivers for Debian 12/11, Ubuntu 22.04 and RHEL 9.

Q: Can the memory be upgraded?
A: The unit ships with 8 GB DDR4 and has one SODIMM DDR4 slot that supports up to 32 GB.

Q: What power input does it use?
A: It accepts 12/24 VDC through a screw-fastened Euroblock terminal, with power consumption of 50 W.

Q: What storage and display options are available?
A: Storage is provided by one CFast slot (SATA III) and one SD slot (SD 3.0, SDHC/SDXC). Display outputs are 1 x VGA and 1 x HDMI.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
