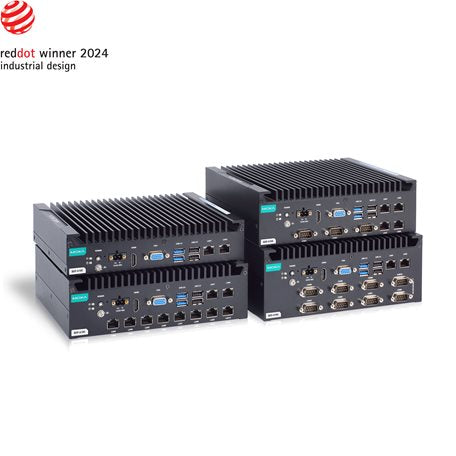

Moxa BXP-A100-E2-2L3C-T | BXP-A100 Fanless Box Computer, Atom x6211E, 8GB, 4 LAN, 5 COM

Authorised Moxa Partner

SKU:BXP-A100-E2-2L3C-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa BXP-A100-E2-2L3C-T is a fanless x86 industrial box computer built on a dual-core Intel Atom x6211E processor with 8 GB DDR4 pre-installed. It combines 4 Gigabit LAN ports, 5 software-selectable RS-232/422/485 serial ports and 4 DI/4 DO digital I/O, making it well suited to industrial gateway, data acquisition and edge control applications powered from a 12/24 VDC supply.

Dual display outputs (VGA and HDMI), 2 USB 3.0 and 4 USB 2.0 ports, CFast and SD storage slots and a SODIMM slot expandable to 32 GB give this compact wall-mount unit the flexibility to handle demanding workloads. A wide -30 to 60°C operating range suits harsh and unattended installations.

Features

- Intel Atom x processor in a compact wall-mount box design
- Fanless construction for reliable industrial operation
- Wide operating temperature range of -30 to 60°C
- Multiple serial and LAN ports for industrial connectivity
- Dual display outputs (VGA + HDMI)
- Built-in 1.5 kV magnetic isolation protection on Ethernet ports

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Atom x6211E, dual core, 1.5M cache, 1.30 GHz
- Memory: 8 GB DDR4 pre-installed, 1 x SODIMM DDR4 slot, up to 32 GB
- Storage slots: 1 x CFast (SATA III), 1 x SD 3.0 (SDHC/SDXC)
- LAN: 4 x 10/100/1000 Mbps (RJ45)
- Serial: 5 x RS-232/422/485, software selectable (DB9 male)
- Digital I/O: 4 x DI, 4 x DO (Euroblock terminal)
- USB: 2 x USB 3.0, 4 x USB 2.0
- Video: 1 x VGA, 1 x HDMI
- Power input: 12/24 VDC
- Operating temperature: -30 to 60°C
- Dimensions: 210 x 166 x 65.5 mm

FAQs

Q: What processor and memory does the BXP-A100-E2-2L3C-T include?
A: It uses a dual-core Intel Atom x6211E processor (1.30 GHz) with 8 GB DDR4 pre-installed. The single SODIMM slot supports up to 32 GB.

Q: How many serial and network ports are provided?
A: It has 4 x 10/100/1000 Mbps RJ45 LAN ports and 5 x RS-232/422/485 serial ports (DB9 male), with the serial mode selectable in software.

Q: What storage options are available?
A: There is 1 x CFast slot (SATA III) and 1 x SD 3.0 slot supporting SDHC/SDXC cards.

Q: What power supply does this model require?
A: It accepts a 12/24 VDC power input.

Q: Can it connect to two displays?
A: Yes. It provides 1 x VGA and 1 x HDMI output for dual display configurations.

Q: What operating temperature range is supported?
A: This model is rated for -30 to 60°C, suiting harsh and unattended industrial installations.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
