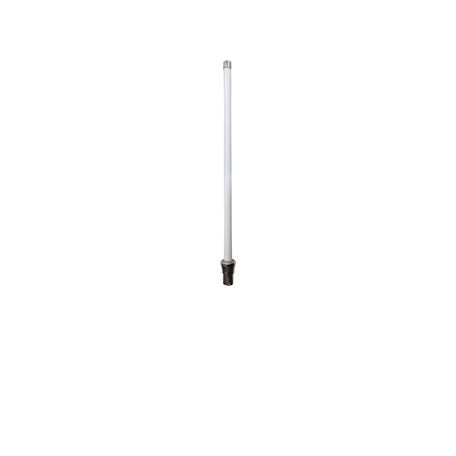

Moxa ANT-WDB-ONF-0709 | Dual-Band Omnidirectional Antenna 7 dBi 2.4 GHz/9 dBi 5 GHz N-Type Female Connector

Moxa ANT-WDB-ONF-0709 | Dual-Band Omnidirectional Antenna 7 dBi 2.4 GHz/9 dBi 5 GHz N-Type Female Connector

SKU:ANT-WDB-ONF-0709

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

Moxa ANT-WDB-ONF-0709 dual-band omnidirectional antenna offers 7 dBi at 2.4 GHz and 9 dBi at 5 GHz with N-type (female) connector. Ideal for WLAN setups.

Features

Warranty

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What are the key features of the Moxa ANT-WDB-ONF-0709 Series antennas?
A: The Moxa ANT-WDB-ONF-0709 Series antennas are dual-band omnidirectional antennas designed for wireless applications. They offer 7 dBi gain at 2.4 GHz and 9 dBi gain at 5 GHz, making them suitable for enhancing wireless network coverage. These antennas feature an N-type (female) connector, ensuring compatibility with a wide range of wireless devices.
Q: How do the Moxa ANT-WDB-ONF-0709 antennas improve wireless network performance?
A: The Moxa ANT-WDB-ONF-0709 antennas improve wireless network performance by providing high gain at both 2.4 GHz and 5 GHz frequencies. With 7 dBi gain at 2.4 GHz and 9 dBi gain at 5 GHz, these antennas enhance signal strength and coverage, reducing dead zones and improving overall network reliability in various environments.
Q: Are the Moxa ANT-WDB-ONF-0709 antennas compatible with all wireless devices?
A: The Moxa ANT-WDB-ONF-0709 antennas are equipped with an N-type (female) connector, which is a common standard in wireless networking. This makes them compatible with a wide range of wireless devices that support N-type connectors, ensuring flexibility in deployment across different network setups.
Q: Can I purchase Moxa ANT-WDB-ONF-0709 antennas from IP Trading in Australia?
A: Yes, you can purchase Moxa ANT-WDB-ONF-0709 antennas from IP Trading, a reputable B2B IT reseller in Australia. IP Trading offers a range of Moxa products, including the ANT-WDB-ONF-0709 Series, providing businesses with reliable solutions for their wireless networking needs.
Q: What documentation is available for the Moxa ANT-WDB-ONF-0709 Series antennas?
A: Comprehensive documentation for the Moxa ANT-WDB-ONF-0709 Series antennas is available, including a detailed datasheet and support resources. The datasheet provides technical specifications and installation guidelines, while the support page offers additional software and documentation to assist with deployment and troubleshooting.

Technical Specifications

Frequency Range: 2.4 GHz and 5 GHz
Gain: 7 dBi at 2.4 GHz, 9 dBi at 5 GHz
Connector Type: N-type (female)
Antenna Type: Dual-band omnidirectional
Operating Temperature Range: -40°C to 85°C
Storage Temperature Range: -40°C to 85°C
Humidity: 5% to 95% non-condensing
Wind Rating: Up to 216 km/h (134 mph)
Impedance: 50 ohms
VSWR: ≤ 2.0
Polarization: Vertical
Dimensions: 515 mm (height)
Weight: 0.5 kg
Mounting: Pole mount
Material: Fiberglass radome
Certifications: RoHS compliant, IP65 rated
Lightning Protection: DC ground
Power Handling: 50 watts maximum
