Moxa ANT-WDB-ANM-0306 | Dual-Band Omnidirectional Antenna, 3 dBi at 2.4 GHz, 6 dBi at 5 GHz, N-Type Male Connector

Moxa ANT-WDB-ANM-0306 | Dual-Band Omnidirectional Antenna, 3 dBi at 2.4 GHz, 6 dBi at 5 GHz, N-Type Male Connector

SKU:ANT-WDB-ANM-0306

Stock Status: Enquire

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Stock Status: Enquire
Taxes included. Shipping calculated at checkout.

Description

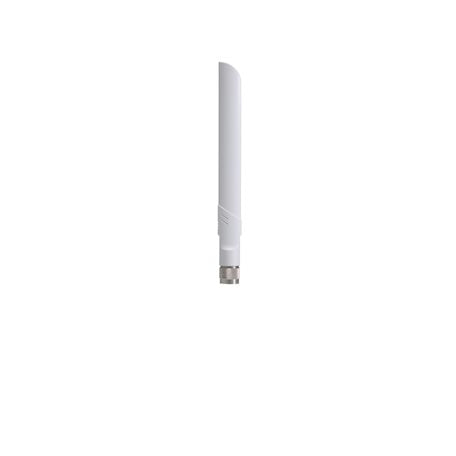

Moxa ANT-WDB-ANM-0306: Dual-band omnidirectional antenna with 3 dBi at 2.4 GHz and 6 dBi at 5 GHz. N-type (male) connector. Ideal for WLAN setups. Product Page

Features

Warranty

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What are the key features of the Moxa ANT-WDB-ANM-0306 Series antennas?
A: The Moxa ANT-WDB-ANM-0306 Series antennas are dual-band, omnidirectional antennas designed for wireless applications. They offer 3 dBi gain at 2.4 GHz and 6 dBi gain at 5 GHz, making them suitable for a variety of environments. These antennas feature an N-type (male) connector, ensuring compatibility with a wide range of wireless devices.
Q: How do the Moxa ANT-WDB-ANM-0306 Series antennas perform in different frequency bands?
A: The Moxa ANT-WDB-ANM-0306 Series antennas are designed to perform efficiently across two frequency bands. They provide a gain of 3 dBi at 2.4 GHz and 6 dBi at 5 GHz. This dual-band capability allows for flexible deployment in various wireless networking scenarios, enhancing signal strength and coverage.
Q: Can the Moxa ANT-WDB-ANM-0306 antennas be used in outdoor environments?
A: Yes, the Moxa ANT-WDB-ANM-0306 antennas are suitable for outdoor use. Their robust design and omnidirectional pattern make them ideal for extending wireless coverage in outdoor settings. However, it is important to ensure that the installation environment is compatible with the antenna's specifications and that proper mounting and weatherproofing measures are taken.
Q: Where can I purchase Moxa ANT-WDB-ANM-0306 Series antennas in Australia?
A: In Australia, you can purchase Moxa ANT-WDB-ANM-0306 Series antennas through authorized resellers such as IP Trading. They offer a range of Moxa products and can provide assistance with selecting the right wireless accessories for your business needs.
Q: What type of connector is used on the Moxa ANT-WDB-ANM-0306 antennas?
A: The Moxa ANT-WDB-ANM-0306 antennas are equipped with an N-type (male) connector. This type of connector is widely used in wireless networking equipment, ensuring compatibility with various devices and facilitating easy integration into existing systems.

Technical Specifications

Frequency Range: 2.4 GHz and 5 GHz dual-band
Gain: 3 dBi at 2.4 GHz, 6 dBi at 5 GHz
Connector Type: N-type (male)
Antenna Type: Omnidirectional
Operating Temperature Range: -40°C to 85°C (-40°F to 185°F)
Storage Temperature Range: -40°C to 85°C (-40°F to 185°F)
Humidity: 5% to 95% non-condensing
Wind Rating: Up to 216 km/h (134 mph)
Impedance: 50 ohms
VSWR: Less than 2.0:1
Polarization: Vertical
Dimensions: Length 290 mm (11.42 in)
Weight: 0.3 kg (0.66 lb)
Material: Fiberglass radome
Mounting: Pole mount or wall mount
Certifications: RoHS compliant, CE, FCC
Lightning Protection: DC ground
Environmental Protection: IP65 rated
