Moxa ABC-03-microSD-T | ABC-03 MicroSD Backup Configurator, 8GB, -40 to 85°C

Authorised Moxa Partner

SKU:ABC-03-microSD-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

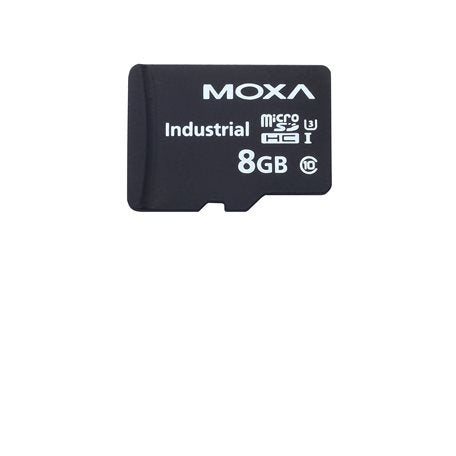

The ABC-03-microSD-T is an 8 GB MicroSD backup configurator for saving and restoring configuration files on Moxa managed Ethernet switches and wireless AP, bridge and client products. With an operating range of -40 to 85°C, it suits industrial cabinets, outdoor enclosures and other harsh environments where fast recovery matters.

It records event logs for troubleshooting, loads firmware and supports plug-and-play configuration restoration, so a replacement unit can be brought back into service quickly without a laptop or console session. Its 11 x 15 x 1 mm form factor adds almost nothing to the installation footprint.

Features

- One-click backup and auto-load technology to reduce system downtime
- Records mass event logs as a troubleshooting tool
- Supports Moxa managed Ethernet switches and wireless APs, bridges and clients
- Auto-backs up switch configuration files whenever a setting is changed
- Plug-and-play configuration backup and restoration
- Wide -40 to 85°C operating temperature for harsh industrial environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Connector: MicroSD card
- Storage capacity: 8 GB TLC NAND Flash
- Dimensions: 11 x 15 x 1 mm (0.43 x 0.59 x 0.04 in)
- Weight: 0.23 g (0.01 lb)
- Operating temperature: -40 to 85°C (-40 to 185°F)
- Storage temperature (package included): -40 to 85°C (-40 to 185°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- Certifications: CE, FCC
- Package contents: 1 x ABC-03 Series automatic backup configurator

FAQs

Q: What does the ABC-03-microSD-T do?
A: It is a MicroSD-based automatic backup configurator that saves and restores configuration files, stores event logs and loads firmware on supported Moxa devices.

Q: Which Moxa products does it support?
A: It supports Moxa managed Ethernet switches and wireless AP, bridge and client products.

Q: What is the storage capacity?
A: It provides 8 GB of TLC NAND flash storage.

Q: Can it operate in extreme temperatures?
A: Yes. It is rated for operation from -40 to 85°C, suitable for industrial and outdoor cabinet deployments.

Q: Does it back up configuration changes automatically?
A: Yes. Switch configuration files are automatically backed up when any setting is changed, and the saved configuration can be restored with plug-and-play simplicity.

Q: What is included in the package?
A: The package contains one ABC-03 Series automatic backup configurator.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
