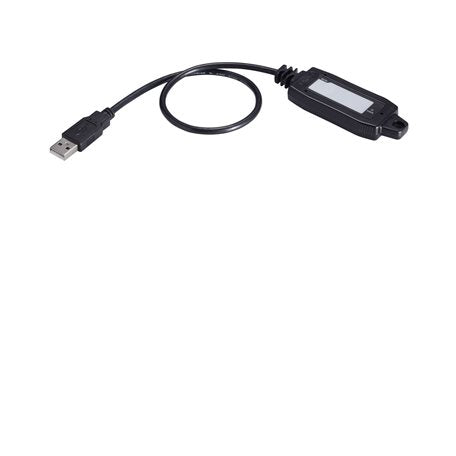

Moxa ABC-02-USB-T | ABC-02 USB Backup Configurator, -40 to 75°C

Authorised Moxa Partner

SKU:ABC-02-USB-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ABC-02-USB-T is a USB backup configurator for backing up and restoring configurations, upgrading firmware and storing log files on Moxa managed Ethernet switches and routers. This is the wide temperature model of the ABC-02 series, rated for operation from -40 to 75°C, making it suited to industrial cabinets, outdoor enclosures and other harsh environments.

With 1GB of SLC NAND flash and a USB 2.0 Type A connector, it provides plug-and-play configuration management with one-click backup and auto-load technology to reduce system downtime. It also supports Moxa wireless APs, bridges and clients, and its compact PVC housing is easy to carry and install.

Features

- One-click backup and auto-load technology to reduce system downtime
- Records mass event logs for troubleshooting
- Supports Moxa managed Ethernet switches and wireless APs, bridges and clients
- Auto-backup of switch configuration files when any setting is changed
- Plug-and-play configuration backup and restoration
- Firmware upgrade via USB

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Connector: USB 2.0 Type A
- Storage: 1GB SLC NAND Flash
- Input voltage: 5 VDC (via USB interface)
- Housing: PVC molding
- IP rating: IP40
- Dimensions: 32.5 x 97 x 12 mm (1.28 x 3.82 x 0.47 in)
- Weight: 50 g (0.11 lb)
- Installation: M4 screws (<4 mm)
- Operating temperature: -40 to 75°C

FAQs

Q: What is the Moxa ABC-02-USB-T used for?
A: It is a USB backup configurator used to back up and restore configurations, upgrade firmware and store log files on Moxa managed Ethernet switches and routers.

Q: What temperature range does the ABC-02-USB-T support?
A: It operates from -40 to 75°C, making it the wide temperature model of the ABC-02 series.

Q: Which devices does it work with?
A: It supports Moxa managed Ethernet switches as well as Moxa wireless APs, bridges and clients.

Q: How much storage does it provide?
A: It includes 1GB of SLC NAND flash for configuration files, firmware and event logs.

Q: How is it powered?
A: It draws 5 VDC through its USB 2.0 Type A interface, so no separate power supply is needed.

Q: Can it back up configurations automatically?
A: Yes. It can auto-backup a switch configuration file whenever any setting is changed, and supports one-click backup and auto-load to restore settings quickly.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
