Moxa ABC-01 | Series Config Backup Tool, RJ45 RS-232, 0-60°C

Authorised Moxa Partner

SKU:ABC-01

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

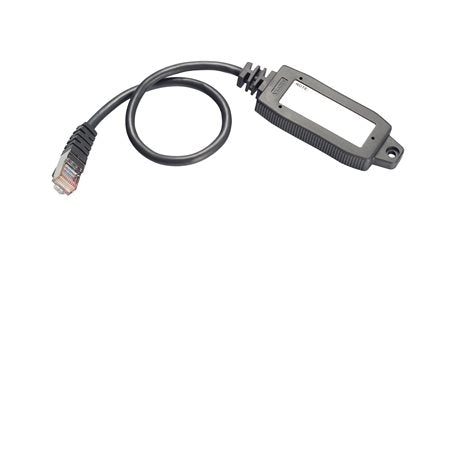

The ABC-01 is an RS-232 configuration backup tool for Moxa managed Ethernet switches and AWK Series wireless APs, bridges and clients. It connects through the RJ45 console port and is built for the standard 0 to 60°C operating range, giving network teams a plug-and-play way to save and restore device configurations in the field.

The tool can reload a stored configuration automatically after a system reboot, which helps reduce downtime when replacing or recovering equipment. A compact, rugged PVC housing with 128 KB of flash storage makes it a practical addition to any industrial network maintenance kit.

Features

- Plug-and-play system configuration backup and restoration
- RS-232 connection through the RJ45 console port
- Loads the saved configuration automatically after a system reboot
- Supports Moxa managed Ethernet switches and AWK Series wireless APs, bridges and clients
- Rugged, reliable design in a compact IP40 housing

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Connector: RJ45 (RS-232 console port)
- Storage capacity: 128 KB Flash
- Input voltage: 3 to 5 VDC (through the RS-232 port's RTS signal)
- Housing: PVC molding, IP40
- Dimensions: 32.5 x 97 x 12 mm (1.28 x 3.82 x 0.47 in)
- Weight: 50 g (0.11 lb)
- Cable length: 35 ±3 cm (including connector)
- Installation: M4 screws (<4 mm)
- Operating temperature: 0 to 60°C (32 to 140°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- EMC: EN 55032 Class A
- EMI: CISPR 32, FCC Part 15B Class A

FAQs

Q: Which Moxa devices does the ABC-01 support?
A: The ABC-01 supports Moxa managed Ethernet switches and AWK Series wireless APs, bridges and clients that provide an RS-232 RJ45 console port.

Q: How does the ABC-01 connect to the device?
A: It plugs into the RJ45 RS-232 console port of the supported device. It draws 3 to 5 VDC through the RTS signal of the RS-232 port, so no separate power supply is required.

Q: Can it restore a configuration automatically?
A: Yes. The ABC-01 can load the stored system configuration automatically after the device reboots, which reduces downtime during replacement or recovery.

Q: How much configuration data can it store?
A: The ABC-01 has 128 KB of flash storage for saving device configuration.

Q: What operating temperature does this model support?
A: This model operates from 0 to 60°C (32 to 140°F) and can be stored from -40 to 85°C (-40 to 185°F).

Q: How is the ABC-01 mounted or secured?
A: It can be installed using M4 screws (under 4 mm). The housing is PVC molded with an IP40 rating and measures 32.5 x 97 x 12 mm.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
