Lenovo ST650 V2 | ThinkSystem ST650 V2 4U Tower Server, Dual Xeon, 32 DIMM

Authorised Lenovo Partner

SKU:ST650 V2

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

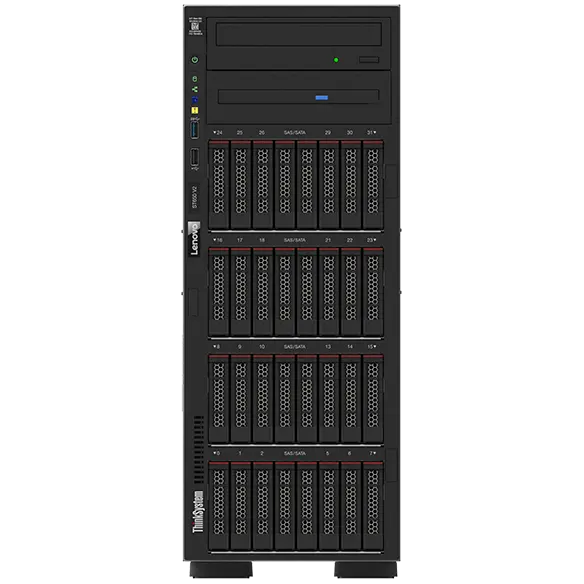

The ThinkSystem ST650 V2 is a 2-socket 4U tower server, rack convertible, built for small businesses through to large enterprises that need reliability, manageability and security with room to grow. It supports up to two 3rd Gen Intel Xeon Scalable processors with up to 36 cores and 250W per CPU, making it well suited to virtualisation, databases and general-purpose workloads.

With 32 TruDDR4 3200MHz DIMM slots, support for Intel Optane Persistent Memory 200 series and flexible 3.5in or 2.5in hot-swap drive configurations, the ST650 V2 offers significant memory and storage headroom over the previous-generation ST550 in the same 4U chassis. Optional NVMe bays, an internal M.2 boot option with RAID 0/1 and optional 5.25in bays for optical or backup drives allow the system to be tailored to the deployment.

Features

- Roughly 5x the memory capacity of the previous-generation ST550
- Faster memory than the ST550 (3200MHz vs 2933MHz)
- Higher-performance 3rd Gen Xeon processors with top-bin CPU support
- More drive capacity than the ST550 in the same 4U chassis
- Tower design that converts to rack mounting for flexible deployment

Warranty

Lenovo offers a standard 1-year warranty across most product lines, including:
• PC Products: 1-year base warranty coverage for laptops, desktops, and other personal computing devices.
• Data Centre Products: 1-year base warranty for servers, storage, and networking hardware.
Warranty coverage includes repair or replacement for eligible defects in materials or workmanship under normal use conditions.
Extended Warranty Options:
IP Trading can offer extended warranty solutions tailored to your business needs. Please contact us for details on available Lenovo extended warranty packages.
https://support.lenovo.com/au/en/solutions/ht505088-product-warranty-and-other-agreements

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 4U tower, rack convertible
- Processors: up to 2x 3rd Gen Intel Xeon Scalable, up to 36 cores and 250W per CPU
- Memory: 32x TruDDR4 3200MHz DIMM slots (RDIMM/3DS), 8 memory channels per CPU
- Persistent memory: supports Intel Optane Persistent Memory 200 series, up to 4TB maximum
- Storage: up to 16x 3.5in hot-swap SAS/SATA bays (up to 8x optional NVMe SSDs)
- Storage: up to 32x 2.5in hot-swap SAS/SATA bays (up to 16x optional NVMe SSDs)
- Boot: internal M.2 with optional RAID 0/1
- Expansion: optional 2x 5.25in drive bays for optical or backup drives

FAQs

Q: Can the ThinkSystem ST650 V2 be mounted in a rack?
A: Yes. It is a 4U tower server that is rack convertible, so it can be deployed as a standalone tower or in a rack.

Q: How many processors does the ST650 V2 support?
A: It supports up to two 3rd Gen Intel Xeon Scalable processors, with up to 36 cores and up to 250W per CPU.

Q: How much memory can the ST650 V2 hold?
A: It has 32 TruDDR4 3200MHz DIMM slots with 8 memory channels per CPU. It also supports Intel Optane Persistent Memory 200 series, up to 4TB maximum.

Q: What drive options are available?
A: Configurations include up to 16x 3.5in or up to 32x 2.5in hot-swap SAS/SATA bays, with optional NVMe SSD support (up to 8 or 16 respectively), plus an internal M.2 option with optional RAID 0/1.

Q: Can it fit optical or tape backup drives?
A: Yes. Optional 2x 5.25in drive bays are available for optical or backup drives.

Q: How does it improve on the ThinkSystem ST550?
A: The ST650 V2 offers roughly 5x the memory capacity, faster 3200MHz memory, higher-performance 3rd Gen Xeon processors and more drive capacity in the same 4U chassis.
