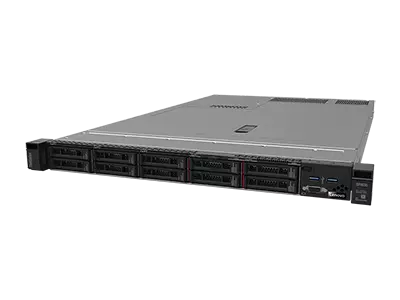

Lenovo SR635 | ThinkSystem SR635 1U Rack Server, AMD EPYC, 16x DDR4

Authorised Lenovo Partner

SKU:SR635

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Lenovo ThinkSystem SR635 is a 1U single-socket rack server built around AMD EPYC 7002 and 7003 series processors with up to 64 cores. It delivers the compute, memory and I/O of a 2-socket system at 1-socket cost, making it well suited to virtualisation and scale-out software-defined storage deployments.

With 16 DDR4 DIMM slots across 8 memory channels, up to 16 front 2.5-inch drive bays including NVMe configurations, dual M.2 slots and PCIe 4.0 expansion, the SR635 balances density and performance for in-memory databases, analytics and storage-heavy workloads. Support for up to 3 single-wide GPUs adds acceleration headroom in a compact rack footprint.

Features

- Balanced design tuned for virtualisation and scale-out software-defined storage
- Storage-dense with up to 16 low-latency NVMe drives for OLTP, analytics, software-defined and HPC storage
- Supports up to 3 single-wide GPUs for acceleration
- PCIe Gen4 slots at up to 16 GT/s
- Large memory capacity suited to in-memory databases

Warranty

Lenovo offers a standard 1-year warranty across most product lines, including:
• PC Products: 1-year base warranty coverage for laptops, desktops, and other personal computing devices.
• Data Centre Products: 1-year base warranty for servers, storage, and networking hardware.
Warranty coverage includes repair or replacement for eligible defects in materials or workmanship under normal use conditions.
Extended Warranty Options:
IP Trading can offer extended warranty solutions tailored to your business needs. Please contact us for details on available Lenovo extended warranty packages.
https://support.lenovo.com/au/en/solutions/ht505088-product-warranty-and-other-agreements

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 1U rack form factor
- 1x AMD EPYC 7002/7003 series processor, up to 64 cores
- TDP up to 280W
- 128x PCIe 4.0 lanes per processor
- 16x DDR4 RDIMM slots, 8 channels, 2933/3200MHz
- Up to 16x 2.5-inch drive bays, including NVMe configurations
- Up to 3x single-wide GPUs
- Dual M.2 slots
- 6 or 7 N+1 redundant dual-rotor hot-swap 40mm fans
- Front USB 3.1 G1 ports, optional VGA port
- Dimensions: 43mm (H) x 440mm (W) x 755mm (D)
- Maximum weight 19.2kg

FAQs

Q: What processors does the Lenovo ThinkSystem SR635 support?
A: The SR635 is a single-socket server supporting one AMD EPYC 7002 or 7003 series processor with up to 64 cores and a TDP of up to 280W.

Q: How many drive bays does the SR635 have?
A: It supports up to 16x 2.5-inch drive bays, including NVMe configurations, plus dual M.2 slots for boot or additional storage.

Q: Can the SR635 take GPUs?
A: Yes, it supports up to 3 single-wide GPUs for acceleration workloads.

Q: What memory does the SR635 use?
A: It has 16 DDR4 RDIMM slots across 8 memory channels, running at 2933MHz or 3200MHz depending on the processor.

Q: What workloads is the SR635 designed for?
A: It is tuned for virtualisation and scale-out software-defined storage, and its NVMe and memory capacity also suit OLTP, analytics, HPC storage and in-memory databases.

Q: Does the SR635 support PCIe 4.0?
A: Yes, each processor provides 128 PCIe 4.0 lanes, with PCIe Gen4 slots running at up to 16 GT/s.
