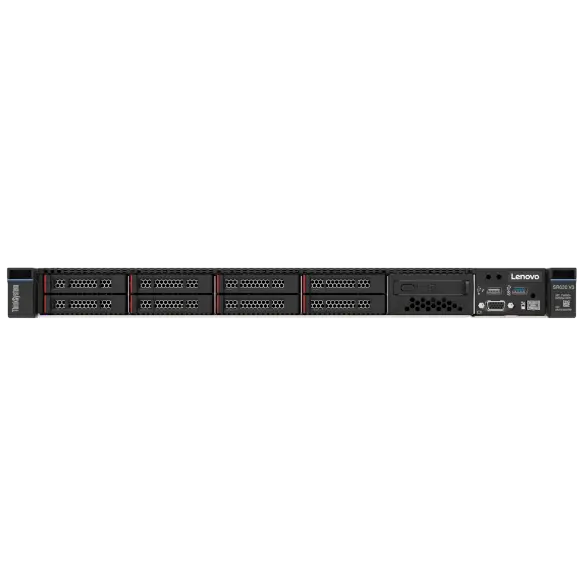

Lenovo SR630 V3 | ThinkSystem SR630 V3 1U Rack Server, 2-Socket Xeon

Authorised Lenovo Partner

SKU:SR630 V3

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Lenovo ThinkSystem SR630 V3 is a 2-socket 1U rack server built for small businesses through to large enterprises that need reliability, strong management and room to grow. It supports one or two 5th Gen Intel Xeon Scalable (Emerald Rapids) or 4th Gen Intel Xeon Scalable (Sapphire Rapids) processors with up to 64 cores each, paired with DDR5 memory for demanding virtualisation, database and general infrastructure workloads.

Hot-swap drives with RAID redundancy, M.2 boot adapters with Intel VROC RAID-1, and hot-swap redundant power supplies and fans help protect data and keep business-critical workloads online. Memory scales up to 8TB using 256GB 3DS RDIMMs, giving headroom as capacity requirements increase. Machine types 7D72 and 7D73 cover the 1-year and 3-year warranty configurations.

Features

- Hot-swap drives with RAID redundancy for data protection and uptime
- M.2 boot adapters supporting RAID-1 via Intel VROC with two SATA or two NVMe M.2 drives
- Hot-swap redundant power supplies and fans for business-critical availability
- Dual-socket design with up to 64 cores per processor for scalable performance
- High-density 1U footprint for space-efficient rack deployments
- Enterprise-grade reliability, management and security

Warranty

Lenovo offers a standard 1-year warranty across most product lines, including:
• PC Products: 1-year base warranty coverage for laptops, desktops, and other personal computing devices.
• Data Centre Products: 1-year base warranty for servers, storage, and networking hardware.
Warranty coverage includes repair or replacement for eligible defects in materials or workmanship under normal use conditions.
Extended Warranty Options:
IP Trading can offer extended warranty solutions tailored to your business needs. Please contact us for details on available Lenovo extended warranty packages.
https://support.lenovo.com/au/en/solutions/ht505088-product-warranty-and-other-agreements

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 1U rack form factor
- Machine types 7D72 and 7D73
- One or two 5th Gen Intel Xeon Scalable (Emerald Rapids) or 4th Gen Intel Xeon Scalable (Sapphire Rapids) processors
- Up to 64 cores per processor, up to 3.9 GHz, TDP up to 385 W
- Intel C741 chipset
- DDR5 memory: Lenovo TruDDR5 RDIMM, 9x4 RDIMM and 3DS RDIMM
- Memory speed up to 5600 MHz at 1 DPC and 4800 MHz at 2 DPC
- Up to 8TB memory with 32x 256GB 3DS RDIMMs
- Up to two hot-swap redundant power supplies
- Up to eight hot-swap redundant fans

FAQs

Q: Which processors does the ThinkSystem SR630 V3 support?
A: It supports one or two 5th Gen Intel Xeon Scalable (Emerald Rapids) or 4th Gen Intel Xeon Scalable (Sapphire Rapids) processors, with up to 64 cores per processor and a TDP of up to 385 W.

Q: How much memory can the SR630 V3 hold?
A: It uses DDR5 memory and scales up to 8TB with 32x 256GB 3DS RDIMMs. Speeds reach 5600 MHz at 1 DPC and 4800 MHz at 2 DPC.

Q: Does the SR630 V3 have redundant power and cooling?
A: Yes. It supports up to two hot-swap redundant power supplies and up to eight hot-swap redundant fans.

Q: Can I mirror the boot drives?
A: Yes. M.2 boot adapters support RAID-1 through Intel VROC using two SATA or two NVMe M.2 drives.

Q: What is the difference between machine types 7D72 and 7D73?
A: Both are the SR630 V3 platform. Machine type 7D72 carries a 1-year warranty and 7D73 carries a 3-year warranty.

Q: What rack space does the SR630 V3 need?
A: It is a 1U rack server, so it occupies a single rack unit and suits dense deployments.
