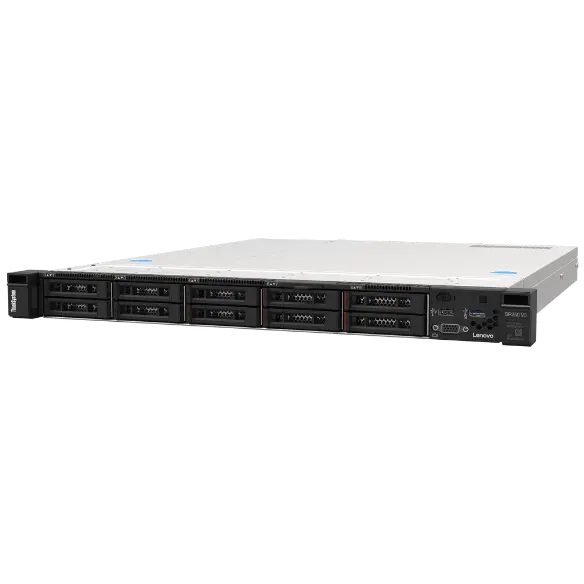

Lenovo SR250 V3 | ThinkSystem SR250 V3 1U Rack Server, Xeon E-2400, DDR5

Authorised Lenovo Partner

SKU:SR250 V3

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Lenovo ThinkSystem SR250 V3 is a single-socket 1U short-depth rack server built for growing businesses, remote sites and distributed enterprises. It pairs an Intel Xeon E-2400 series processor with up to 128GB of TruDDR5 ECC memory and PCIe 5.0 expansion, delivering strong performance for virtualisation and business applications at an entry-level price point.

A 561mm short-depth chassis fits 4-post and 2-post racks, and flexible drive bay options cover 3.5in and 2.5in SATA, SAS and NVMe storage. Optional NVIDIA RTX A400 or A1000 GPU support suits edge AI inferencing, while XClarity Controller 2 management and a hardware Root of Trust provide enterprise-class security and remote administration.

Features

- Next-generation Intel Xeon processors deliver higher workload performance at an entry-level price
- DDR5 memory and PCIe 5.0 support for modern workloads
- Optional GPU support for remote installations and AI inferencing
- Hardware Root of Trust and Platform Firmware Resiliency for enterprise-class security
- Short-depth 1U chassis installs in 4-post or 2-post racks
- Energy-efficient design with CPUs no higher than 95W

Warranty

Lenovo offers a standard 1-year warranty across most product lines, including:
• PC Products: 1-year base warranty coverage for laptops, desktops, and other personal computing devices.
• Data Centre Products: 1-year base warranty for servers, storage, and networking hardware.
Warranty coverage includes repair or replacement for eligible defects in materials or workmanship under normal use conditions.
Extended Warranty Options:
IP Trading can offer extended warranty solutions tailored to your business needs. Please contact us for details on available Lenovo extended warranty packages.
https://support.lenovo.com/au/en/solutions/ht505088-product-warranty-and-other-agreements

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1U rack, short-depth (561mm)
- Processor: 1 x Intel Xeon 6300-series / Xeon E-2400 series, up to 8 cores, up to 95W
- Memory: 4 x UDIMM slots, up to 128GB TruDDR5 ECC, up to 5600MHz
- Drive bays: 4 x 3.5in SATA, or 2 x 3.5in SATA + 2 x 3.5in NVMe, or 8 x 2.5in or 10 x 2.5in hot-swap SAS/SATA
- Optional 2 x M.2 SATA kit
- Expansion: 1 x PCIe Gen 5 x16 slot or 2 x PCIe Gen 4 x8 slots
- GPU: optional NVIDIA RTX A400 or RTX A1000
- RAID: hardware RAID adapter or HBA supported
- Network: 2 x 1GbE embedded LOM
- Front ports: 1 x USB 2.0, 1 x USB 3.2 Gen 1, optional front VGA
- Management: XClarity Controller 2 (XCC2), Root of Trust module, TPM
- Power: fixed 300W PSU or dual redundant CRPS Titanium PSU
- OS support: Microsoft Windows Server, Red Hat, SUSE, VMware ESXi

FAQs

Q: How much memory does the ThinkSystem SR250 V3 support?
A: It has 4 UDIMM slots supporting up to 128GB of TruDDR5 ECC memory using 16GB or 32GB UDIMMs, at speeds up to 5600MHz.

Q: Can the SR250 V3 be fitted with a GPU?
A: Yes. It supports an optional NVIDIA RTX A400 or RTX A1000 GPU, which suits edge AI inferencing and remote site deployments.

Q: What drive configurations are available?
A: Options include 4 x 3.5in SATA bays, 2 x 3.5in SATA plus 2 x 3.5in NVMe, or 8 or 10 x 2.5in hot-swap SAS/SATA bays. An optional 2 x M.2 SATA kit is also available.

Q: Will it fit in a shallow rack?
A: The short-depth 1U chassis measures 561mm and installs in both 4-post and 2-post racks.

Q: Which operating systems does it support?
A: Microsoft Windows Server, Red Hat, SUSE and VMware ESXi are supported.

Q: What remote management does it include?
A: It includes the ThinkSystem XClarity Controller 2 (XCC2) for out-of-band management, plus a hardware Root of Trust module and TPM for security.
