Lenovo 7Z71A06UAU | ThinkSystem SR630 V2 1U Rack Server, Xeon Silver 4309Y, 16GB, 8x 2.5in SAS

Name: Lenovo 7Z71A06UAU | ThinkSystem SR630 V2 1U Rack Server, Xeon Silver 4309Y, 16GB, 8x 2.5in SAS
Brand: Lenovo
SKU: 7Z71A06UAU
Price: 6555.23 AUD
Availability: BackOrder

Authorised Lenovo Partner

SKU:7Z71A06UAU

Stock Status: Enquire

$6,555.23 inc. GST

$5,959.30 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

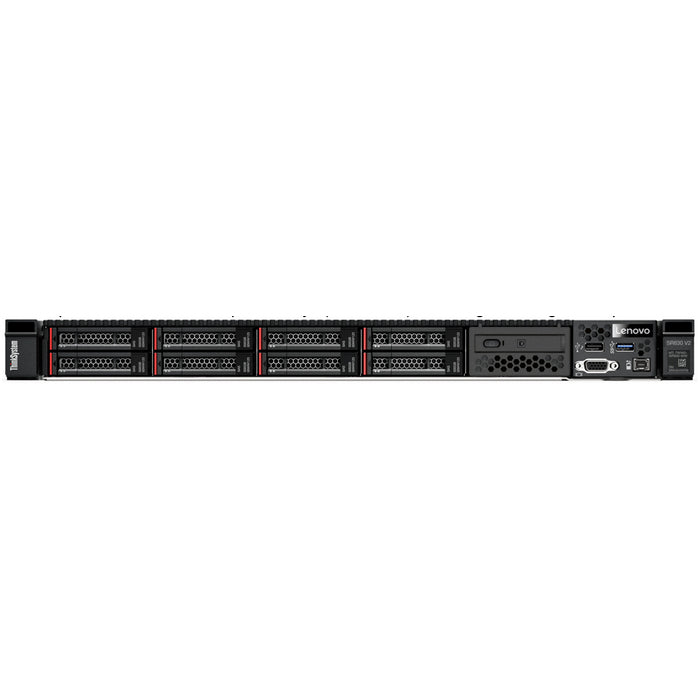

The Lenovo ThinkSystem SR630 V2 is a 1U, 2-socket rack server built on 3rd-generation Intel Xeon Scalable (Ice Lake) processors, suited to virtualisation, databases, VDI and web workloads. This configuration ships with one Xeon Silver 4309Y 8-core 2.8GHz processor, 16GB of TruDDR4 memory, a 9350-8i RAID adapter, eight 2.5-inch SAS hot-swap bays and a single 750W hot-swap power supply.

With two low-profile PCIe 4.0 slots plus a dedicated OCP 3.0 networking slot, the SR630 V2 leaves room to expand networking and I/O. The second CPU socket and 32 DIMM slots allow memory and compute to scale, while the XClarity Controller provides embedded remote management for efficient deployment in dense data-centre racks.

Features

- Dual-socket capable 1U design for dense data-centre deployments
- 3rd-gen Intel Xeon Scalable (Ice Lake) platform with PCIe 4.0 support
- Hardware RAID with 8x 2.5in SAS/SATA hot-swap bays
- Hot-swap power supply, drives and fans
- XClarity Controller for embedded remote management
- Optional OCP 3.0 networking adapter slot supporting 1/10/25GbE adapters
- Supports Intel Optane Persistent Memory 200 Series
- Compatible with Microsoft Windows Server, RHEL, SUSE and VMware ESXi

Warranty

Lenovo offers a standard 1-year warranty across most product lines, including:
• PC Products: 1-year base warranty coverage for laptops, desktops, and other personal computing devices.
• Data Centre Products: 1-year base warranty for servers, storage, and networking hardware.
Warranty coverage includes repair or replacement for eligible defects in materials or workmanship under normal use conditions.
Extended Warranty Options:
IP Trading can offer extended warranty solutions tailored to your business needs. Please contact us for details on available Lenovo extended warranty packages.
https://support.lenovo.com/au/en/solutions/ht505088-product-warranty-and-other-agreements

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Processor: 1x Intel Xeon Silver 4309Y 8C 105W 2.8GHz (second socket available)
- Chipset: Intel C621A
- Memory: 16GB (1x 16GB) TruDDR4 installed, 32 DIMM slots with two processors
- Memory type: TruDDR4 RDIMM and 3DS RDIMM, up to 3200MHz at 2 DPC, up to 8TB maximum
- RAID: 9350-8i adapter
- Drive bays: 8x 2.5in SAS/SATA hot-swap
- PCIe: 2x low-profile PCIe 4.0 slots plus OCP 3.0 slot
- Power supply: 1x 750W hot-swap AC
- Cooling: 6x fans
- Management: XClarity Controller (XCC) Enterprise, dedicated 1GbE RJ-45 management port
- Front ports: 1x USB 3.2 G1, 1x USB 2.0, external diagnostics port, optional VGA
- Rear ports: 3x USB 3.2 G1, 1x VGA
- Video: G200 with 16MB, up to 1920x1200 at 60Hz
- Security: Chassis intrusion switch, TPM 2.0, power-on and administrator passwords
- Form factor: 1U rack, 440 x 43 x 773 mm, maximum 20.8 kg

FAQs

Q: Does this SR630 V2 support a second processor?
A: Yes. The server is a 2-socket platform and this configuration ships with one Xeon Silver 4309Y, leaving the second socket available for expansion.

Q: How many drive bays does this model have?
A: This configuration provides eight 2.5-inch SAS/SATA hot-swap bays managed by the 9350-8i RAID adapter.

Q: What operating systems are supported?
A: The SR630 V2 supports Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi.

Q: What expansion options are available for networking?
A: The server has a dedicated OCP 3.0 slot supporting 1/10/25GbE adapters, plus two low-profile PCIe 4.0 slots in this configuration.

Q: How much memory can the server hold?
A: It has 32 DIMM slots with two processors installed and supports up to 8TB using 256GB 3DS RDIMMs. This model ships with 16GB installed.

Q: Does it include remote management?
A: Yes. The XClarity Controller (XCC) Enterprise provides embedded remote management through a dedicated 1GbE RJ-45 management port.
