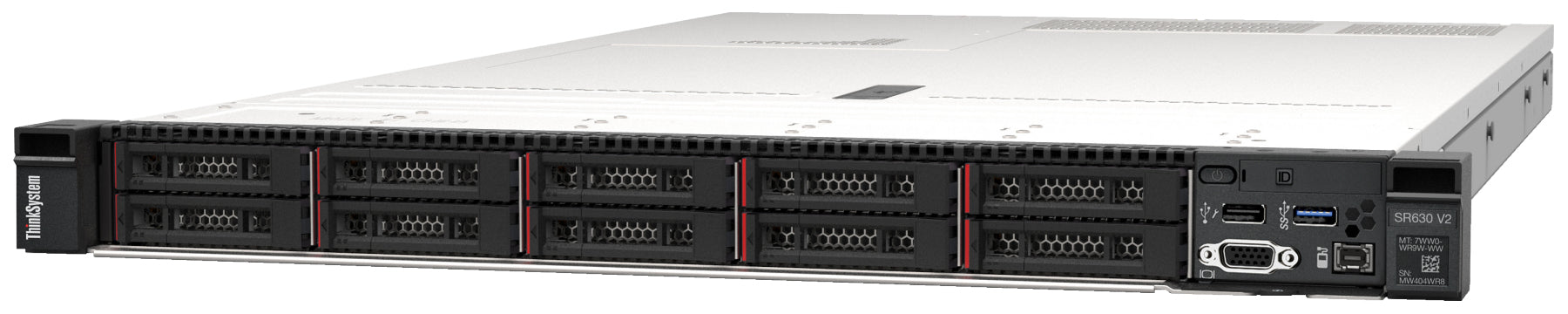

Lenovo 7Z71A018AU | ThinkSystem SR630 V2 1U Rack Server, Xeon Silver 4309Y, 16GB, 750W

Name: Lenovo 7Z71A018AU | ThinkSystem SR630 V2 1U Rack Server, Xeon Silver 4309Y, 16GB, 750W
Brand: Lenovo
SKU: 7Z71A018AU
Price: 5268.73 AUD
Availability: BackOrder

Authorised Lenovo Partner

SKU:7Z71A018AU

Stock Status: Enquire

$5,268.73 inc. GST

$4,789.75 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The ThinkSystem SR630 V2 1U rack server is a 2-socket platform built on third-generation Intel Xeon Scalable processors, aimed at small businesses through to large enterprises that need reliability, management and security. This configuration includes one Intel Xeon Silver 4309Y 8-core 2.8GHz processor, 1x 16GB of memory, a 2.5-inch open drive bay chassis with no RAID controller fitted, and a single 750W hot-swap power supply.

The platform provides 32 DIMM slots with two processors, PCIe 4.0 expansion with two low-profile slots on this model, and a dedicated OCP 3.0 slot for networking. XClarity Controller embedded management, TPM 2.0 and hot-swap drives, power supplies and fans make it a dependable foundation for virtualisation, hybrid data centre and general business workloads.

Features

- Mainstream 1U 2-socket performance and density with internal expandability for hybrid data centre workloads
- Supports 3rd Gen Intel Xeon Scalable processors, up to 40 cores
- Supports Intel Optane Persistent Memory 200 Series
- Flexible storage with SAS/SATA, NVMe AnyBay and EDSFF E1.S drive options on the platform
- PCIe 4.0 expansion plus a dedicated OCP 3.0 slot for networking
- Hot-swap drives, power supplies and fans
- XClarity Controller embedded management with optional remote control upgrades
- TPM 2.0 and optional lockable front security bezel

Warranty

Lenovo offers a standard 1-year warranty across most product lines, including:
• PC Products: 1-year base warranty coverage for laptops, desktops, and other personal computing devices.
• Data Centre Products: 1-year base warranty for servers, storage, and networking hardware.
Warranty coverage includes repair or replacement for eligible defects in materials or workmanship under normal use conditions.
Extended Warranty Options:
IP Trading can offer extended warranty solutions tailored to your business needs. Please contact us for details on available Lenovo extended warranty packages.
https://support.lenovo.com/au/en/solutions/ht505088-product-warranty-and-other-agreements

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 1U rack form factor, 440 x 43 x 773 mm, maximum 20.8 kg
- 1x Intel Xeon Silver 4309Y, 8 cores, 2.8GHz, 105W (3rd Gen Intel Xeon Scalable)
- 1x 16GB memory installed, 32 DIMM slots with two processors
- Memory platform supports TruDDR4 RDIMM and 3DS RDIMM up to 3200MHz at 2 DPC
- 2.5-inch drive bay chassis, open bay, RAID controller optional (none included)
- Internal M.2 module supporting up to two M.2 drives for OS boot
- 1x 750W hot-swap AC power supply, 80 PLUS Platinum or Titanium
- 2x low-profile PCIe Gen4 slots plus OCP 3.0 slot (open, no network adapter included)
- Front ports: 1x USB 3.2 G1, 1x USB 2.0 (also XCC local management), external diagnostics port
- Rear ports: 3x USB 3.2 G1, 1x VGA, 1x RJ-45 1GbE XCC management port
- 6x fans, Standard cooling
- Integrated G200 graphics, 16MB, up to 1920x1200 at 60Hz
- XClarity Controller (XCC) Standard management
- TPM 2.0 and power-on and administrator passwords
- 3-year customer-replaceable unit and onsite limited warranty, 9x5 next business day (machine type 7Z71)

FAQs

Q: What processor and memory are included with the 7Z71A018AU?
A: This model includes one Intel Xeon Silver 4309Y 8-core 2.8GHz processor and a single 16GB memory module. A second processor and additional memory can be added, with up to 32 DIMM slots available when two processors are fitted.

Q: Does this server include a RAID controller or network adapter?
A: No. This configuration has a 2.5-inch open drive bay chassis with no RAID controller fitted, and the OCP 3.0 slot is open with no network adapter included. Both can be added as options.

Q: What power supply is fitted and can I add redundancy?
A: One 750W hot-swap AC power supply is fitted. The platform supports up to two hot-swap redundant power supplies, so a second unit can be added for redundancy.

Q: How many PCIe slots does this model have?
A: This model provides two low-profile PCIe Gen4 slots plus the open OCP 3.0 slot. The platform supports up to three PCIe 4.0 rear slots, with the third slot requiring two processors.

Q: Which operating systems are supported?
A: The SR630 V2 supports Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi.

Q: What management tools are included?
A: The server includes XClarity Controller (XCC) Standard with a dedicated 1GbE management port. It also works with XClarity Administrator, Integrator and Energy Manager, and optional XCC Advanced or Enterprise upgrades add further remote management features.
