Lenovo 7Z71A013AU | ThinkSystem SR630 V2 1U Rack Server, Xeon Silver 4310, 32GB, 750W

Name: Lenovo 7Z71A013AU | ThinkSystem SR630 V2 1U Rack Server, Xeon Silver 4310, 32GB, 750W
Brand: Lenovo
SKU: 7Z71A013AU
Price: 5256.08 AUD
Availability: BackOrder

Authorised Lenovo Partner

SKU:7Z71A013AU

Stock Status: Enquire

$5,256.08 inc. GST

$4,778.25 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

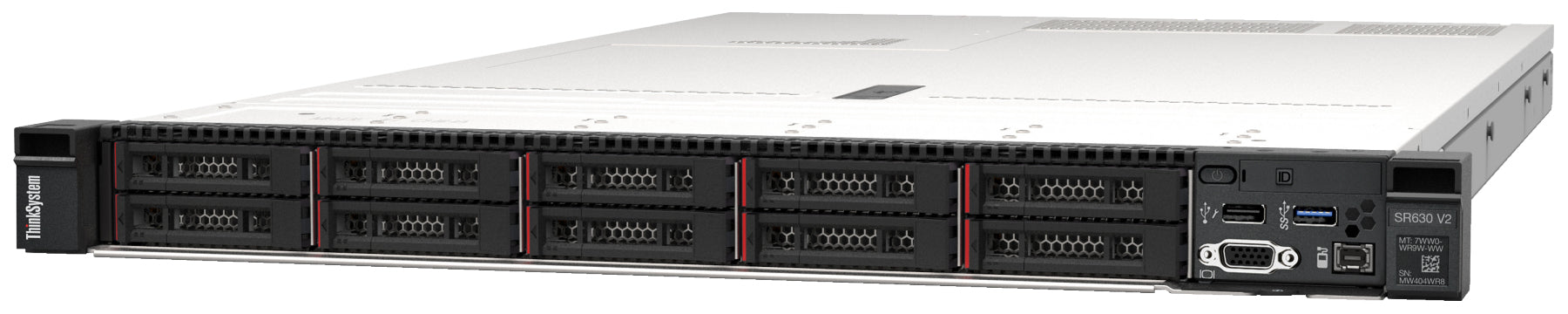

The Lenovo ThinkSystem SR630 V2 is a 1U rack server built for virtualisation, databases, VDI, cloud, web and HPC workloads in small business through to enterprise environments. This configuration includes one Intel Xeon Silver 4310 processor (12 cores, 2.1 GHz, 120W), one 32GB 2Rx8 TruDDR4 RDIMM and one 750W hot-swap power supply, with 2.5-inch front drive bays supplied as an open bay without a RAID adapter.

The platform supports 3rd-gen Intel Xeon Scalable (Ice Lake) processors in a 2-socket design, up to 32 DIMM slots and PCIe 4.0 connectivity, including an OCP 3.0 SFF slot for network adapters. Management is handled by the embedded XClarity Controller, with TPM 2.0 for platform security, making it a dense and manageable building block for rack deployments.

Features

- Dense 1U 2-socket design for databases, virtualisation, VDI, cloud, web and HPC workloads
- 3rd-gen Intel Xeon Scalable processors with PCIe 4.0 connectivity
- Up to 12 direct-connect NVMe drives with no oversubscription
- Hot-swap drives, power supplies and fans
- Lenovo XClarity Controller embedded remote management
- TPM 2.0 and optional lockable security bezel
- Support for Intel Optane Persistent Memory 200 Series
- Internal M.2 module supporting up to two M.2 drives

Warranty

Lenovo offers a standard 1-year warranty across most product lines, including:
• PC Products: 1-year base warranty coverage for laptops, desktops, and other personal computing devices.
• Data Centre Products: 1-year base warranty for servers, storage, and networking hardware.
Warranty coverage includes repair or replacement for eligible defects in materials or workmanship under normal use conditions.
Extended Warranty Options:
IP Trading can offer extended warranty solutions tailored to your business needs. Please contact us for details on available Lenovo extended warranty packages.
https://support.lenovo.com/au/en/solutions/ht505088-product-warranty-and-other-agreements

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 1U rack, 2-socket capable
- Processor: 1x Intel Xeon Silver 4310, 12 cores, 2.1 GHz, 120W
- Memory installed: 1x 32GB TruDDR4 RDIMM, 2Rx8
- Memory slots: 32 DIMM slots, up to 8TB with 3DS RDIMMs
- Power supply: 1x 750W hot-swap AC, 80 PLUS Platinum
- Drive bays: 2.5-inch front bays, open bay with no RAID adapter
- Platform drive support: up to 4x 3.5-inch, 12x 2.5-inch or 16x EDSFF hot-swap
- Network: OCP 3.0 SFF slot, PCIe 4.0 x16
- PCIe slots: 2x low-profile PCIe Gen4 in this model
- Management: XClarity Controller with dedicated 1GbE RJ-45 port
- Security: TPM 2.0
- Ports front: 1x USB 3.2 G1, 1x USB 2.0
- Ports rear: 3x USB 3.2 G1, 1x VGA
- Dimensions (W x H x D): 440 x 43 x 773 mm
- Maximum weight: 20.8 kg

FAQs

Q: What processor and memory come installed in the 7Z71A013AU?
A: This configuration includes one Intel Xeon Silver 4310 (12 cores, 2.1 GHz, 120W) and one 32GB 2Rx8 TruDDR4 RDIMM.

Q: Does this server include a RAID adapter or drives?
A: No. The 2.5-inch front bays are an open bay with no RAID adapter or drives included. Optional 12Gb SAS/SATA RAID adapters and HBAs are available, and onboard SATA and NVMe are supported.

Q: Can I add a second processor or more memory?
A: The platform supports one or two 3rd-gen Intel Xeon Scalable processors and up to 32 DIMM slots with two processors installed, reaching up to 8TB with 3DS RDIMMs.

Q: What power supply is fitted and can it be made redundant?
A: A single 750W hot-swap AC power supply (80 PLUS Platinum) is fitted. The platform supports up to two power supplies for redundancy, with 500W, 750W, 1100W and 1800W AC options and a 1100W -48V DC option.

Q: What network connectivity does it support?
A: A dedicated OCP 3.0 SFF slot (PCIe 4.0 x16) accepts 2-port or 4-port 1GbE, 10GbE and 25GbE adapters. A 1GbE RJ-45 port is provided for XClarity Controller management.

Q: Which operating systems are supported?
A: Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi are supported.
