Lenovo

Lenovo 7Z57A03558 | Passive 25G SFP28 DAC Cable, 3m

Lenovo 7Z57A03558 | Passive 25G SFP28 DAC Cable, 3m

Authorised Lenovo Partner

SKU:7Z57A03558

$130.30 inc. GST
$118.45 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Stock Status: Enquire

Description

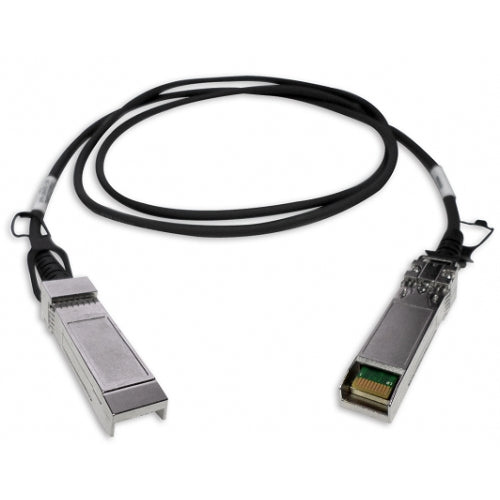

The Lenovo 3m Passive 25G SFP28 DAC Cable is a passive direct-attach copper cable terminated with SFP28 connectors at both ends, designed for short-reach 25GbE links between ThinkSystem servers, network adapters and switches. At 3 metres it suits connections between adjacent racks or from a server to a top-of-rack switch.

This cable is listed as supported on Lenovo ThinkSystem 10/25GbE SFP28 adapters, including Broadcom 57454, Mellanox ConnectX-6 Lx and Intel XXV710 models, and on the ThinkSystem NE2552E Flex Switch within the Flex System Enterprise Chassis. Shorter 1m (7Z57A03557) and longer 5m (7Z57A03559) lengths are available in the same range.

Features

- Passive DAC for short-reach 25GbE connections
- Supported on Lenovo ThinkSystem 10/25GbE SFP28 adapters (Broadcom 57454, Mellanox ConnectX-6 Lx, Intel XXV710)
- Listed as compatible with the ThinkSystem NE2552E Flex Switch and Flex System Enterprise Chassis
- Also available in 1m (7Z57A03557) and 5m (7Z57A03559) lengths

Warranty

Lenovo offers a standard 1-year warranty across most product lines, including:
• PC Products: 1-year base warranty coverage for laptops, desktops, and other personal computing devices.
• Data Centre Products: 1-year base warranty for servers, storage, and networking hardware.
Warranty coverage includes repair or replacement for eligible defects in materials or workmanship under normal use conditions.
Extended Warranty Options:
IP Trading can offer extended warranty solutions tailored to your business needs. Please contact us for details on available Lenovo extended warranty packages.
https://support.lenovo.com/au/en/solutions/ht505088-product-warranty-and-other-agreements

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Find the Right Cable

Technical Specifications

- Part number: 7Z57A03558
- Feature code: AV1X
- Cable length: 3 m
- Cable type: Passive direct-attach copper (DAC)
- Connector: SFP28 to SFP28
- Data transfer rate: 25 Gbit/s

FAQs

Q: What type of cable is the 7Z57A03558?
A: It is a passive direct-attach copper (DAC) cable, 3 metres long, with SFP28 connectors at both ends for 25 Gbit/s links.

Q: Which Lenovo adapters is this cable listed as supported on?
A: It is listed as supported on Lenovo ThinkSystem 10/25GbE SFP28 adapters, including Broadcom 57454, Mellanox ConnectX-6 Lx and Intel XXV710 models.

Q: Is it compatible with the ThinkSystem NE2552E Flex Switch?
A: Yes, it is listed as compatible with the ThinkSystem NE2552E Flex Switch and the Flex System Enterprise Chassis.

Q: What other lengths are available in this range?
A: A 1m version (7Z57A03557) and a 5m version (7Z57A03559) are available in the same Lenovo passive 25G SFP28 DAC range.

Q: Does this cable require separate transceivers?
A: No. The SFP28 connectors are built into the cable ends, so no separate optical transceivers are needed. It plugs directly into SFP28 ports.
