Lenovo 7X10A0A9AU | ThinkSystem ST550 Tower Server, Xeon Silver 4208, 16GB, 750W

Name: Lenovo 7X10A0A9AU | ThinkSystem ST550 Tower Server, Xeon Silver 4208, 16GB, 750W
Brand: Lenovo
SKU: 7X10A0A9AU
Price: 4142.88 AUD
Availability: BackOrder

Authorised Lenovo Partner

SKU:7X10A0A9AU

Stock Status: Enquire

$4,142.88 inc. GST

$3,766.25 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

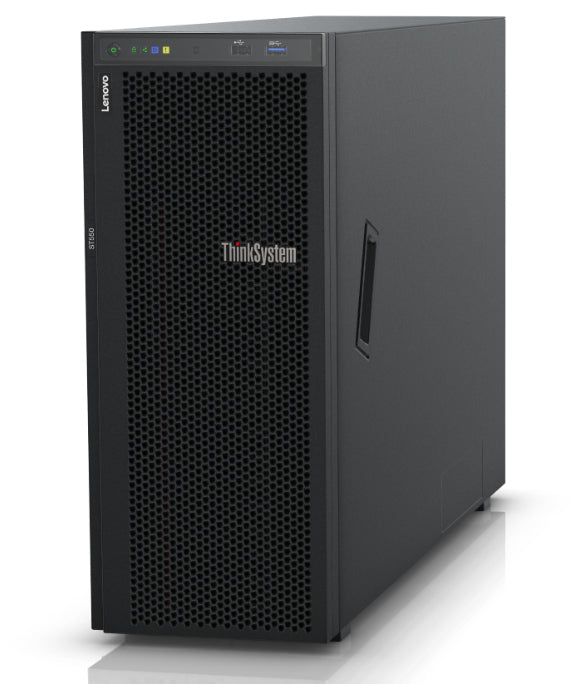

The ThinkSystem ST550 Tower Server is a 2-socket tower server that can also be converted to 4U rack mounting, aimed at small and medium businesses, branch offices and retail. This configuration pairs one Intel Xeon Silver 4208 8-core 85W processor with a single 16GB TruDDR4 2933MHz RDIMM, a ThinkSystem RAID 530-8i adapter, 8x 2.5-inch hot-swap bays (expandable to 20) and one 750W hot-swap Platinum power supply.

Built on second-generation Intel Xeon Scalable platforms, the ST550 offers 12 DIMM sockets for up to 768GB of memory, up to 7 PCIe slots with double-wide GPU support in slots 3 and 5, and 2x integrated Gigabit Ethernet ports. Hot-swap drives and power supplies, along with XClarity Controller management, support dependable day-to-day operation and remote administration.

Features

- Supports 2nd-gen Intel Xeon Scalable processors with up to 768GB TruDDR4 memory
- Hot-swap power supplies, fans and drives for enterprise-grade reliability
- Lenovo XClarity Controller and XClarity Provisioning Manager for deployment and management
- Tower or 4U rack-mount flexibility
- Up to 20x 2.5-inch drive bays and up to 7 PCIe slots, with double-wide GPU support in slots 3 and 5
- Optional lockable front security door and chassis intrusion switch

Warranty

Lenovo offers a standard 1-year warranty across most product lines, including:
• PC Products: 1-year base warranty coverage for laptops, desktops, and other personal computing devices.
• Data Centre Products: 1-year base warranty for servers, storage, and networking hardware.
Warranty coverage includes repair or replacement for eligible defects in materials or workmanship under normal use conditions.
Extended Warranty Options:
IP Trading can offer extended warranty solutions tailored to your business needs. Please contact us for details on available Lenovo extended warranty packages.
https://support.lenovo.com/au/en/solutions/ht505088-product-warranty-and-other-agreements

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Machine type: 7X10, tower or 4U rack convertible
- Processor: 1x Intel Xeon Silver 4208, 8 cores, 2.1GHz, 85W
- Memory: 1x 16GB TruDDR4 2933MHz 2Rx8 RDIMM
- Memory capacity: 12 DIMM sockets, up to 768GB with two processors and 64GB RDIMMs
- Storage controller: ThinkSystem RAID 530-8i
- Drive bays: 8x 2.5-inch hot-swap SAS/SATA, expandable to 20
- Optical/tape bays: two half-height 5.25-inch bays (open)
- Network: 2x 1GbE RJ-45 (Intel X722)
- PCIe slots: up to 7 (6 general purpose PCIe 3.0 plus 1 for M.2 adapter)
- Front ports: 1x USB 3.0, 1x USB 2.0
- Rear ports: 2x USB 3.0, 4x USB 2.0, 1x VGA, 1x RJ-45 management, 2x RJ-45 GbE
- Power supply: 1x 750W hot-swap Platinum AC (up to 2 redundant supported)
- Video: G200 with 16MB, up to 1920x1200 at 60Hz
- Systems management: XClarity Controller (Enterprise level)
- Security: TPM 1.2/2.0, Kensington lock slot, lockable side cover
- Dimensions (W x H x D): 176 x 438 x 660 mm with tower feet
- Weight: up to 36 kg fully configured

FAQs

Q: Can the ThinkSystem ST550 be mounted in a rack?
A: Yes. The ST550 is a tower server that can be converted to 4U rack mounting, giving flexibility between standalone and rack deployments.

Q: How many drives can this configuration support?
A: This SKU ships with 8x 2.5-inch hot-swap bays, expandable to 20 bays. It includes a ThinkSystem RAID 530-8i adapter, and NVMe support is optional.

Q: How much memory can be installed?
A: The server has 12 DIMM sockets (6 per processor). With two processors and 12x 64GB RDIMMs it supports up to 768GB. This SKU includes one 16GB TruDDR4 2933MHz RDIMM.

Q: Does it support a second processor or redundant power?
A: The platform supports one or two Intel Xeon Scalable processors and up to two hot-swap power supplies for redundancy. This SKU ships with one Xeon Silver 4208 and one 750W Platinum power supply.

Q: What network connectivity is built in?
A: Two integrated Gigabit Ethernet 1000BASE-T RJ-45 ports (Intel X722) are included, plus a dedicated RJ-45 port for systems management.

Q: Which operating systems are supported?
A: Supported operating systems include Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi.
