Lenovo 7X08A09HAU | ThinkSystem SR530 1U Rack Server, Xeon Silver 4208, 16GB, 8x 2.5in, 750W

Name: Lenovo 7X08A09HAU | ThinkSystem SR530 1U Rack Server, Xeon Silver 4208, 16GB, 8x 2.5in, 750W
Brand: Lenovo
SKU: 7X08A09HAU
Price: 4674.18 AUD
Availability: BackOrder

Authorised Lenovo Partner

SKU:7X08A09HAU

Stock Status: Enquire

$4,674.18 inc. GST

$4,249.25 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

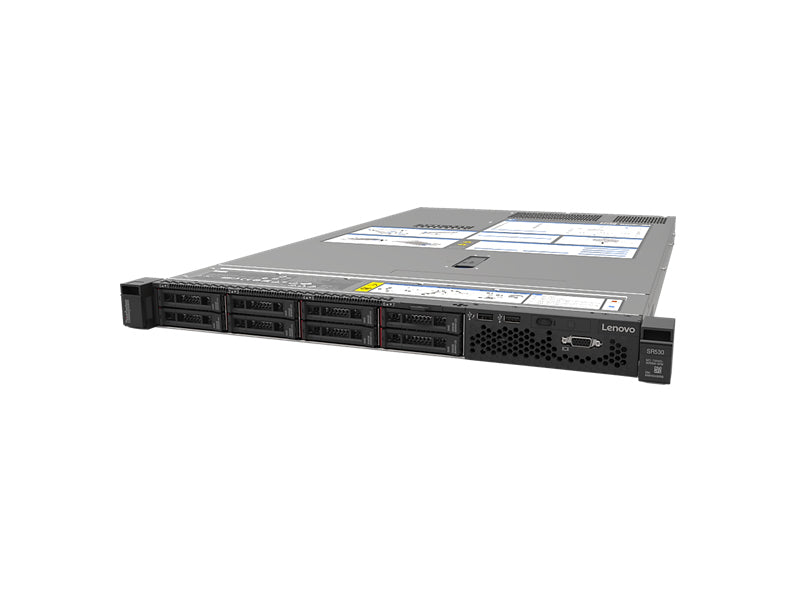

The ThinkSystem SR530 is a 2-socket 1U rack server for small business through to enterprise workloads, balancing reliability, management and security at a cost-optimised price. This 7X08A09HAU build comes preconfigured with one Intel Xeon Silver 4208 (8 cores, 2.1 GHz), 1x 16GB 2933 MHz memory, a RAID 530-8i controller, 8x 2.5-inch SAS hot-swap bays and a single 750W hot-swap power supply. It includes XClarity Controller Enterprise and slide rails with a cable management arm.

The platform scales to a second processor and up to 768GB of memory across 12 DIMM sockets. Integrated 1 GbE networking can be extended through the optional LOM and ML2 slots, and up to three PCIe 3.0 slots support further expansion. It supports Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi.

Features

- Affordable 2-socket 1U rack server for small business to enterprise workloads
- Intel Xeon Scalable Gen 2 processors with up to 2933 MHz memory
- Hot-swap drive bays and hot-swap power supply
- XClarity Controller Enterprise with proactive platform alerts
- Memory protection including ECC, SDDC, memory mirroring and rank sparing
- Flexible network options through LOM and ML2 slots
- Security features including TPM 2.0 support and optional lockable bezel

Warranty

Lenovo offers a standard 1-year warranty across most product lines, including:
• PC Products: 1-year base warranty coverage for laptops, desktops, and other personal computing devices.
• Data Centre Products: 1-year base warranty for servers, storage, and networking hardware.
Warranty coverage includes repair or replacement for eligible defects in materials or workmanship under normal use conditions.
Extended Warranty Options:
IP Trading can offer extended warranty solutions tailored to your business needs. Please contact us for details on available Lenovo extended warranty packages.
https://support.lenovo.com/au/en/solutions/ht505088-product-warranty-and-other-agreements

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Processor: 1x Intel Xeon Silver 4208, 8 cores, 85W, 2.1 GHz
- Memory: 1x 16GB 2Rx8 2933 MHz, 12 DIMM sockets, up to 768GB
- Storage controller: RAID 530-8i
- Drive bays: 8x 2.5-inch SAS hot-swap
- Power supply: 1x 750W hot-swap
- Form factor: 1U rack-mount, 435 x 43 x 750 mm
- Networking: 2x integrated 1 GbE RJ-45, optional LOM and ML2 slots
- Management: XClarity Controller Enterprise, 1x RJ-45 10/100/1000 management port
- Expansion: up to 3 PCIe 3.0 slots
- Front ports: 1x USB 2.0 with XClarity Controller access, 1x USB 3.0
- Rear ports: 2x USB 3.0, 1x VGA
- Security: TPM 1.2/2.0 support, power-on and administrator passwords
- Rails: slide rails with cable management arm

FAQs

Q: Can this SR530 be upgraded to a second processor?
A: Yes. The platform supports up to two Intel Xeon Gen 2 Bronze, Silver, Gold or Platinum processors. This model ships with one Xeon Silver 4208.

Q: How much memory does the SR530 support?
A: It has 12 DIMM sockets (6 per processor) supporting RDIMMs and LRDIMMs, up to 768GB with 12x 64GB RDIMMs. This model includes 1x 16GB 2933 MHz module.

Q: What storage is configured in this model?
A: It has 8x 2.5-inch SAS hot-swap bays managed by a RAID 530-8i controller.

Q: Does the SR530 support GPUs?
A: No. GPUs are not supported on this platform.

Q: Does this model include redundant power?
A: This model includes a single 750W hot-swap power supply. The platform supports up to two redundant hot-swap supplies.

Q: What operating systems are supported?
A: Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi are supported.
