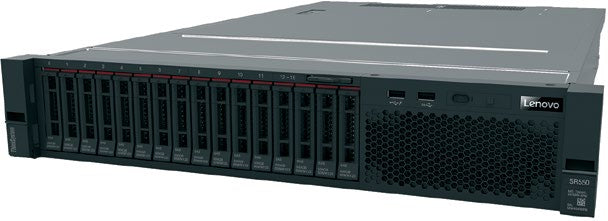

Lenovo 7X04A07LAU | ThinkSystem SR550 2U Rack Server, Xeon Silver 4208, 16GB

Name: Lenovo 7X04A07LAU | ThinkSystem SR550 2U Rack Server, Xeon Silver 4208, 16GB
Brand: Lenovo
SKU: 7X04A07LAU
Price: 4874.05 AUD
Availability: BackOrder

Authorised Lenovo Partner

SKU:7X04A07LAU

Stock Status: Enquire

$4,874.05 inc. GST

$4,430.95 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Lenovo ThinkSystem SR550 2U rack server is built around Intel Xeon Scalable processors for small to large organisations that need reliability, strong remote management and built-in security. This model ships with one Xeon Silver 4208 8-core 2.1GHz processor, 1x 16GB 2666MHz RDIMM, a 530-8i RAID controller, 8x 2.5-inch SAS/SATA hot-swap bays, a single 750W Platinum hot-swap power supply and slide rails.

The platform supports up to two Intel Xeon processors, 12 DIMM sockets for up to 768GB of memory, and storage that expands to 16 small form factor hot-swap bays. Two integrated 1GbE ports are standard, with optional LOM and ML2 slots for 10GbE networking, and Lenovo XClarity Controller provides out-of-band management, proactive alerts and TPM 2.0 security.

Features

- 2U rack server for small to large organisations, focused on reliability, management and security
- Intel Xeon Scalable processor support with memory speeds up to 2933MHz
- Flexible storage from 8 LFF to 16 SFF hot-swap bays, up to 491.52TB internal capacity with 2.5-inch SSDs
- Hot-swap drives and power supplies for reduced downtime
- Lenovo XClarity Controller for remote management and proactive platform alerts
- Built-in security with TPM 2.0 and secure firmware updates
- Flexible LOM and ML2 slots for 1GbE or 10GbE networking
- ECC, SDDC, memory mirroring, rank sparing and patrol scrubbing for memory protection

Warranty

Lenovo offers a standard 1-year warranty across most product lines, including:
• PC Products: 1-year base warranty coverage for laptops, desktops, and other personal computing devices.
• Data Centre Products: 1-year base warranty for servers, storage, and networking hardware.
Warranty coverage includes repair or replacement for eligible defects in materials or workmanship under normal use conditions.
Extended Warranty Options:
IP Trading can offer extended warranty solutions tailored to your business needs. Please contact us for details on available Lenovo extended warranty packages.
https://support.lenovo.com/au/en/solutions/ht505088-product-warranty-and-other-agreements

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Form factor: 2U rack-mount, slide rails included
- Processor: 1x Intel Xeon Silver 4208 8C 85W 2.1GHz
- Platform supports up to two Intel Xeon Gen 2 Bronze, Silver, Gold or Platinum processors
- Chipset: Intel C622
- Memory: 1x 16GB 2Rx8 2666MHz RDIMM installed
- Memory sockets: 12 DIMM sockets, RDIMM and LRDIMM supported, up to 768GB with 12x 64GB RDIMMs
- RAID controller: 530-8i
- Drive bays: 8x 2.5-inch SAS/SATA hot-swap, expandable to 16 SFF
- Optical drive: none (external USB DVD-RW supported)
- Network: 2x integrated 1GbE RJ-45, optional LOM or ML2 slot for 10GbE, 1x 1GbE RJ-45 management port
- Expansion: up to 6 PCIe 3.0 slots, this model ships with 1x PCIe x8 riser configuration
- Front ports: 1x USB 2.0 (XCC access), 1x USB 3.0, optional VGA
- Rear ports: 2x USB 3.0, 1x VGA, optional DB-9 serial
- Power supply: 1x 750W hot-swap High Efficiency Platinum, second PSU optional
- Cooling: 3 fans with one CPU, 4 fans with two CPUs, N+1 redundancy
- Video: Matrox G200 with 16MB, integrated in XClarity Controller, up to 1920x1200 at 60Hz
- Management: XClarity Controller Enterprise, XClarity Provisioning Manager
- Security: TPM 1.2/2.0, power-on and administrator passwords, secure firmware updates
- Dimensions (W x H x D): 445 x 87 x 764 mm
- Weight: 19 kg minimum configuration, 26 kg maximum

FAQs

Q: Which processor and memory does the 7X04A07LAU include?
A: It ships with one Intel Xeon Silver 4208 8-core 2.1GHz 85W processor and one 16GB 2Rx8 2666MHz RDIMM.

Q: Can the SR550 take a second processor and more memory?
A: Yes. The platform supports up to two Intel Xeon Gen 2 processors and 12 DIMM sockets (6 per processor), with up to 768GB using 12x 64GB RDIMMs.

Q: What storage is included and how far can it expand?
A: This model has 8x 2.5-inch SAS/SATA hot-swap bays driven by a 530-8i RAID controller, expandable to 16 small form factor hot-swap bays.

Q: Does this server have redundant power?
A: It ships with a single 750W hot-swap Platinum power supply. A second hot-swap power supply is optional for redundancy.

Q: Are rack rails included?
A: Yes, this configuration includes slide rails for 2U rack mounting.

Q: How is the server managed remotely?
A: It includes Lenovo XClarity Controller Enterprise with a dedicated 1GbE management port for out-of-band management and proactive alerts.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .
