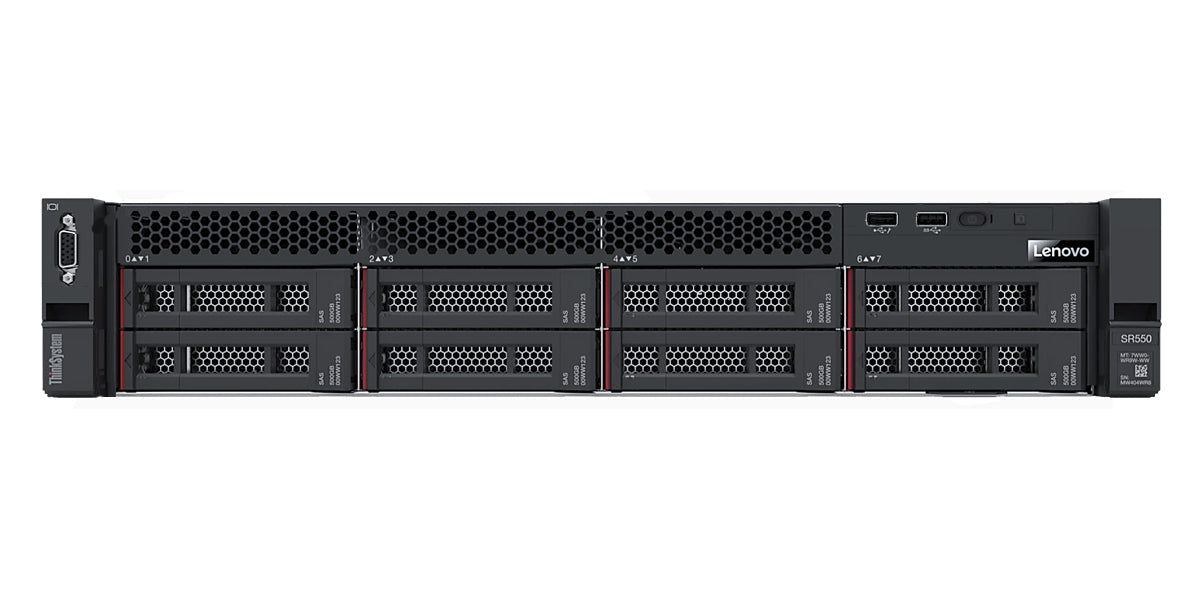

Lenovo 7X04A07KAU | ThinkSystem SR550 2U Rack Server, Xeon Silver 4210, 16GB, 750W

Authorised Lenovo Partner

SKU:7X04A07KAU

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Lenovo ThinkSystem SR550 7X04A07KAU is a dual-socket capable 2U rack server for small to large organisations that need reliability, manageability and security. This model ships with one Intel Xeon Silver 4210 processor (10 cores, 2.2GHz, 85W), 16GB of TruDDR4 memory and a 750W Platinum hot-swap power supply, giving a ready-to-deploy base for virtualisation, databases and general business workloads.

The SR550 offers flexible storage in a 2U chassis, with up to 16 x 2.5-inch or 12 x 3.5-inch drive bays and an M.2 boot option. I/O scales through a LOM slot and up to six PCIe 3.0 slots, while Lenovo XClarity Controller provides embedded systems management. The platform supports up to two Gen 2 Intel Xeon Scalable processors and up to 768GB of memory across 12 DIMM slots.

Features

- Up to 2933MHz memory speeds and up to 768GB capacity for data-intensive applications
- Flexible internal storage in a 2U form factor, performance-optimised (2.5-inch) or capacity-optimised (3.5-inch)
- I/O scalability with a LOM slot and up to six PCIe 3.0 slots
- Lenovo XClarity Controller embedded systems management
- Memory protection including SDDC and ADDDC (with x4 DIMMs)
- Intel AVX-512 acceleration for AI and HPC workloads

Warranty

Lenovo offers a standard 1-year warranty across most product lines, including:
• PC Products: 1-year base warranty coverage for laptops, desktops, and other personal computing devices.
• Data Centre Products: 1-year base warranty for servers, storage, and networking hardware.
Warranty coverage includes repair or replacement for eligible defects in materials or workmanship under normal use conditions.
Extended Warranty Options:
IP Trading can offer extended warranty solutions tailored to your business needs. Please contact us for details on available Lenovo extended warranty packages.
https://support.lenovo.com/au/en/solutions/ht505088-product-warranty-and-other-agreements

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model 7X04A07KAU (machine type 7X04, 3-year warranty)
- 2U rack-mount form factor
- Processor: 1 x Intel Xeon Silver 4210 (10 cores, 2.2GHz, 85W)
- Supports up to two Gen 2 Intel Xeon Bronze, Silver, Gold or Platinum processors
- Chipset: Intel C622
- Memory: 16GB TruDDR4 installed, 12 DIMM slots, up to 768GB at up to 2933MHz
- Storage: up to 16 x 2.5-inch or 12 x 3.5-inch drive bays, plus M.2 boot option
- Expansion: up to 6 x PCIe 3.0 slots plus a LOM slot
- Power supply: 750W Platinum, hot-swap, redundancy supported
- Networking: 2 x 1GbE ports plus 1 x dedicated 1GbE XClarity Controller management port
- Ports: 2 x USB 3.0, 1 x VGA

FAQs

Q: What processor and memory come installed in the 7X04A07KAU?
A: This model includes one Intel Xeon Silver 4210 processor (10 cores, 2.2GHz, 85W) and 16GB of TruDDR4 memory.

Q: Can the SR550 be expanded with a second processor or more memory?
A: Yes. The platform supports up to two Gen 2 Intel Xeon Bronze, Silver, Gold or Platinum processors and 12 DIMM slots for up to 768GB of memory at up to 2933MHz.

Q: What drive configurations does the SR550 support?
A: The chassis supports up to 16 x 2.5-inch or 12 x 3.5-inch drive bays, plus an M.2 boot option.

Q: Does the power supply support redundancy?
A: The included 750W Platinum power supply is hot-swap and the platform supports power supply redundancy.

Q: What expansion and networking options are available?
A: The server provides up to six PCIe 3.0 slots plus a LOM slot, 2 x 1GbE ports, and a dedicated 1GbE port for the XClarity Controller.

Q: How is the server managed remotely?
A: The Lenovo XClarity Controller is embedded in the system and uses the dedicated 1GbE management port for out-of-band management.
